Qty 16

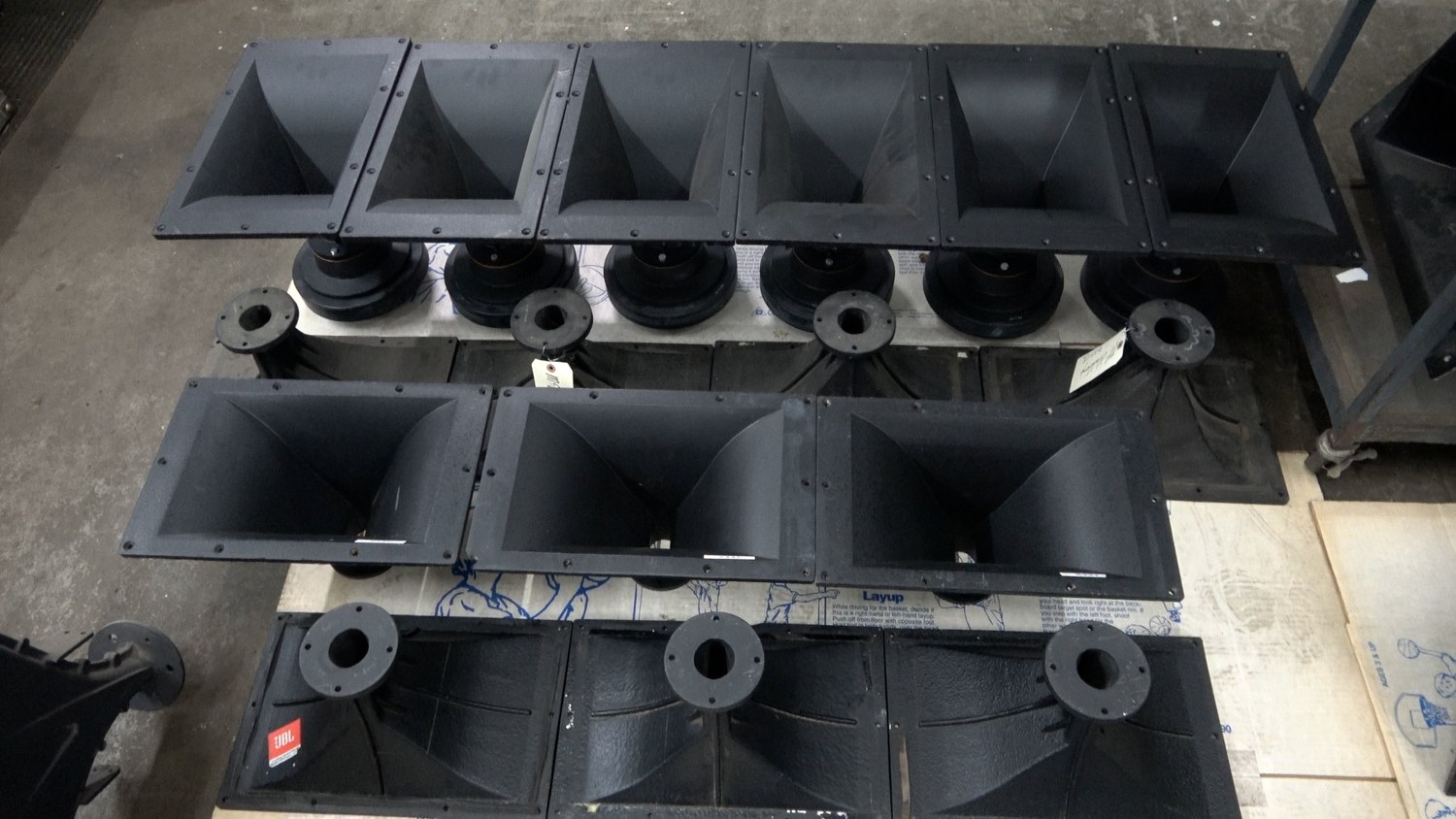

JBL 2380A Horns
Large-format 2-inch JBL professional horns. Dimensions in the updated master inventory: approximately 11 × 17 × 9¼ inches.

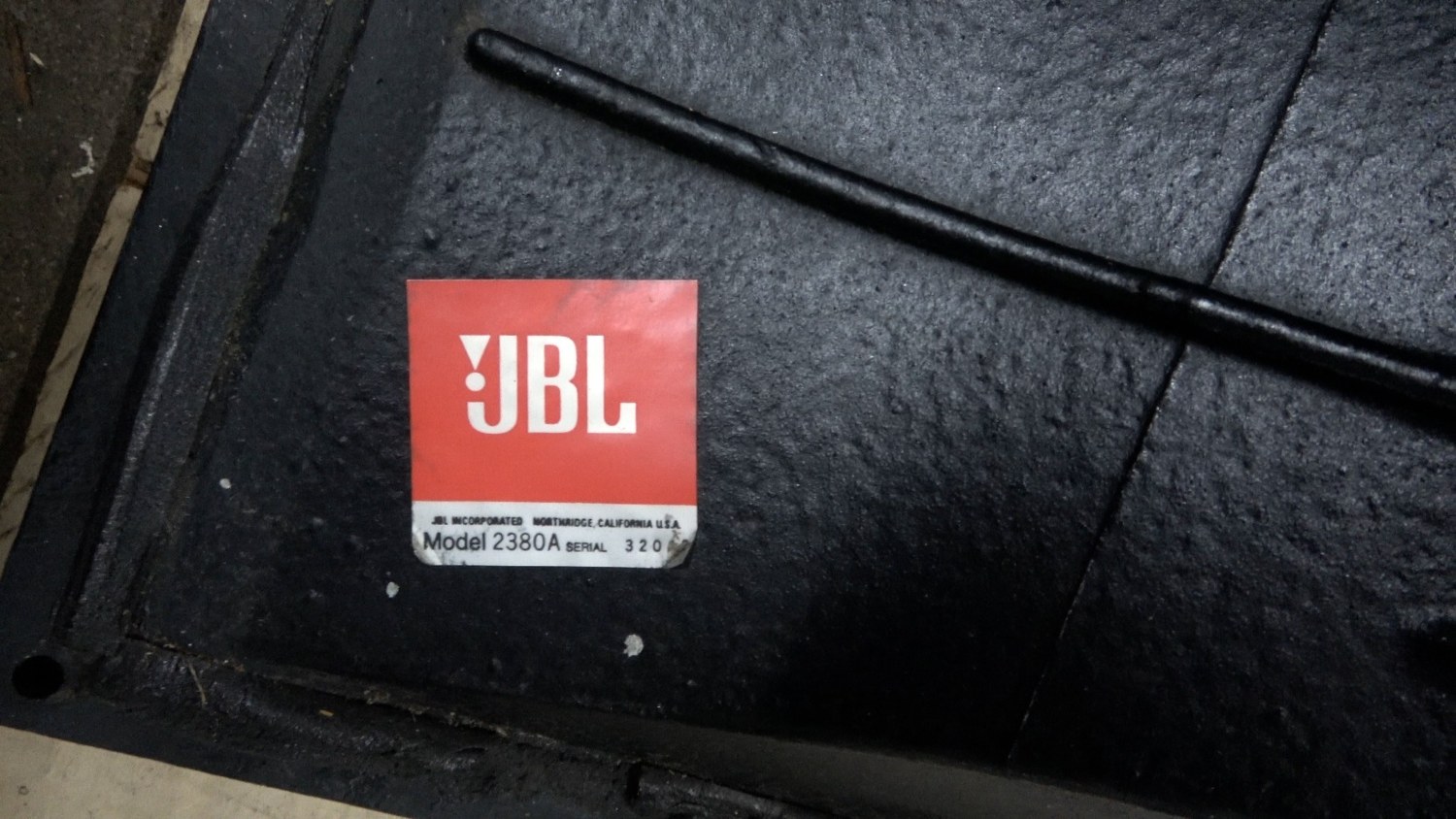

JBL 2380A model label.
Vintage Professional Audio Collection
Horns, Lenses & Adapters
Professional horns, acoustic lenses and large-format assemblies from the collection.
This category is intentionally a working draft. The horn photography session is next, and this page will expand as the remaining horns and lenses are grouped, photographed and positively identified.
Updated horn inventory. Quantities and dimensions follow the current master list; the photographs are used for identification and documentation, not for quantity counting.

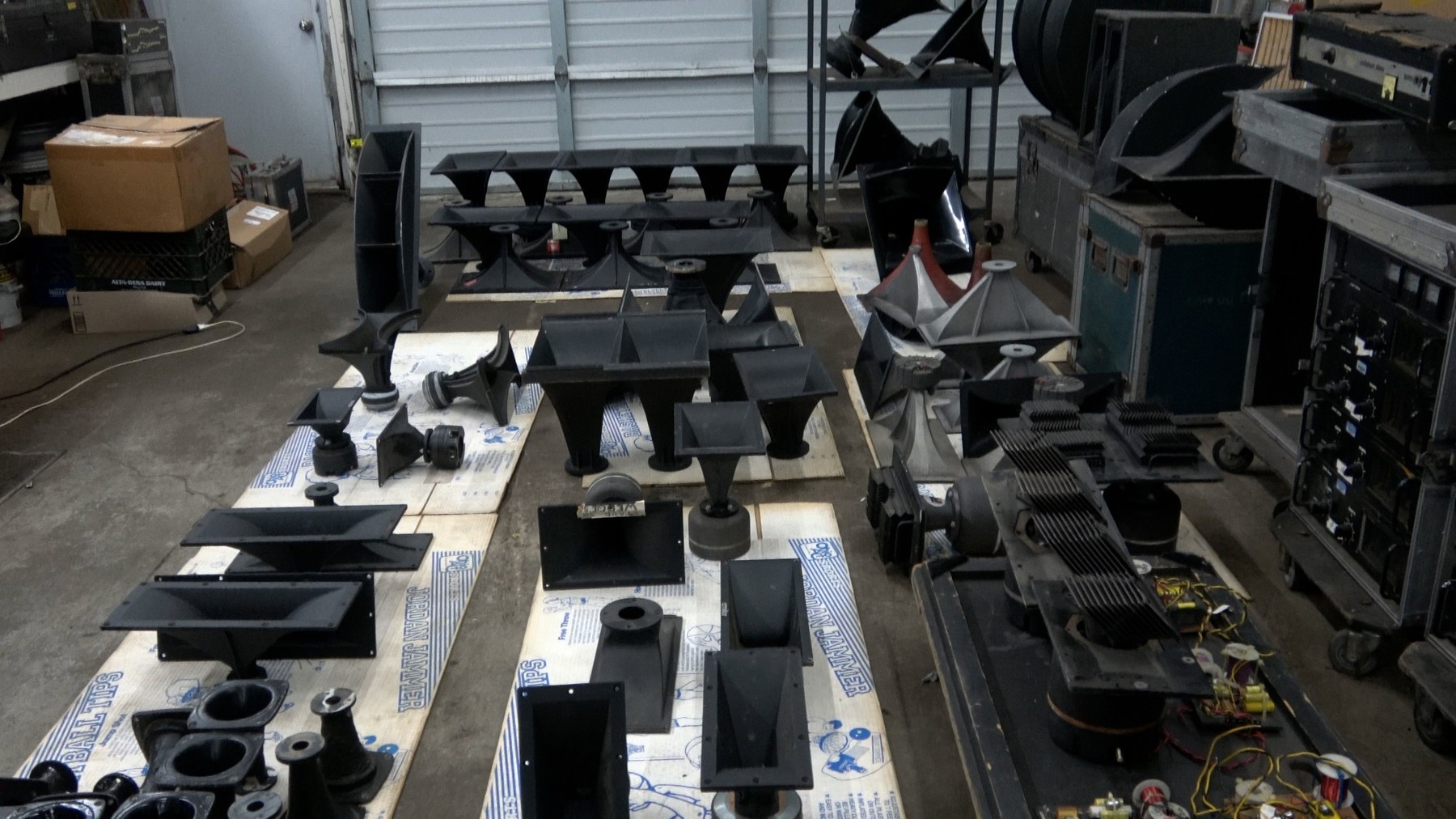

Horn, lens and adapter inventory laid out for documentation.
Horns
Qty 4

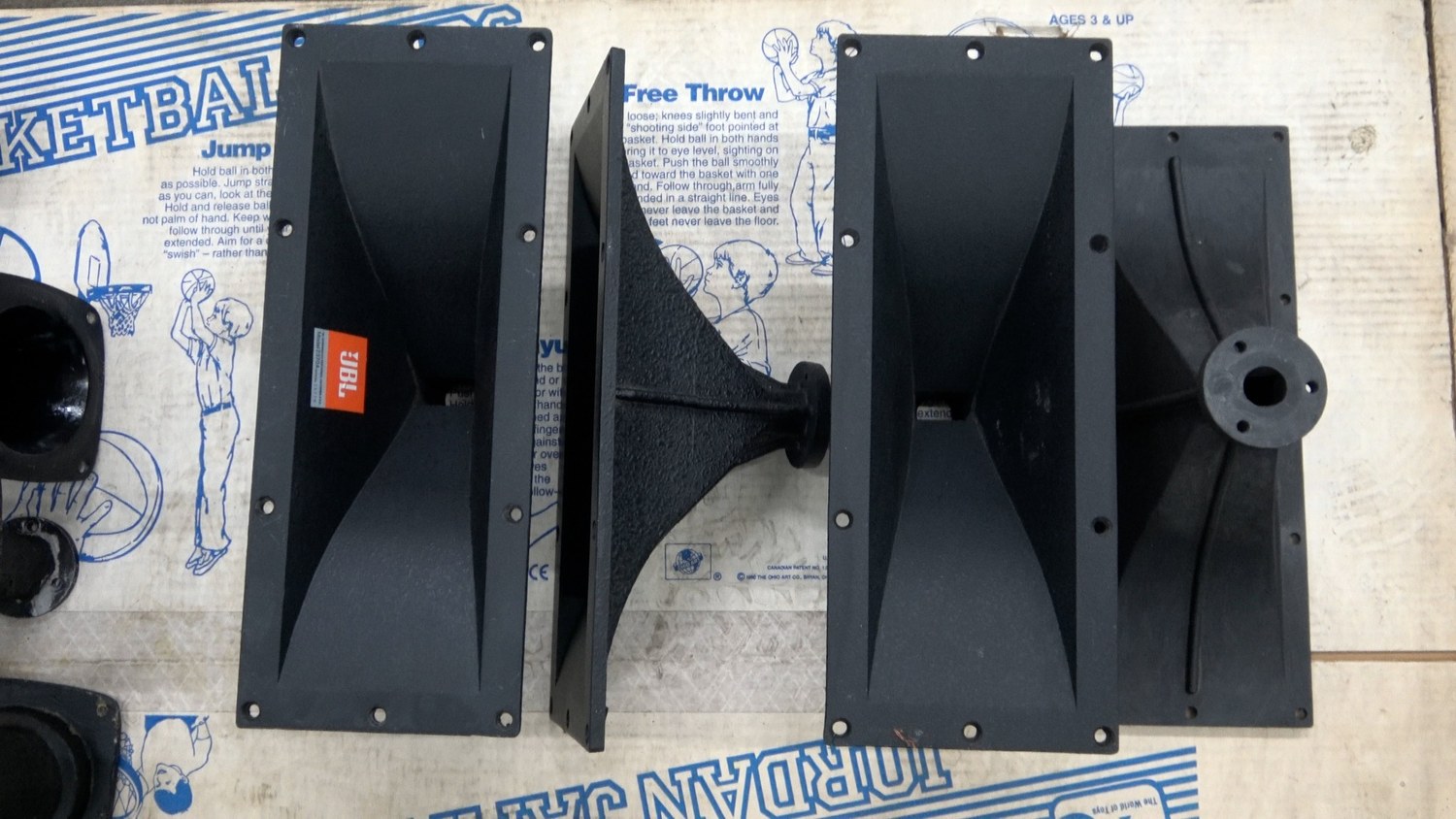

JBL 2370A Horns
One-inch JBL professional horns. Dimensions in the updated master inventory: approximately 7 × 17¾ × 6⅞ inches.

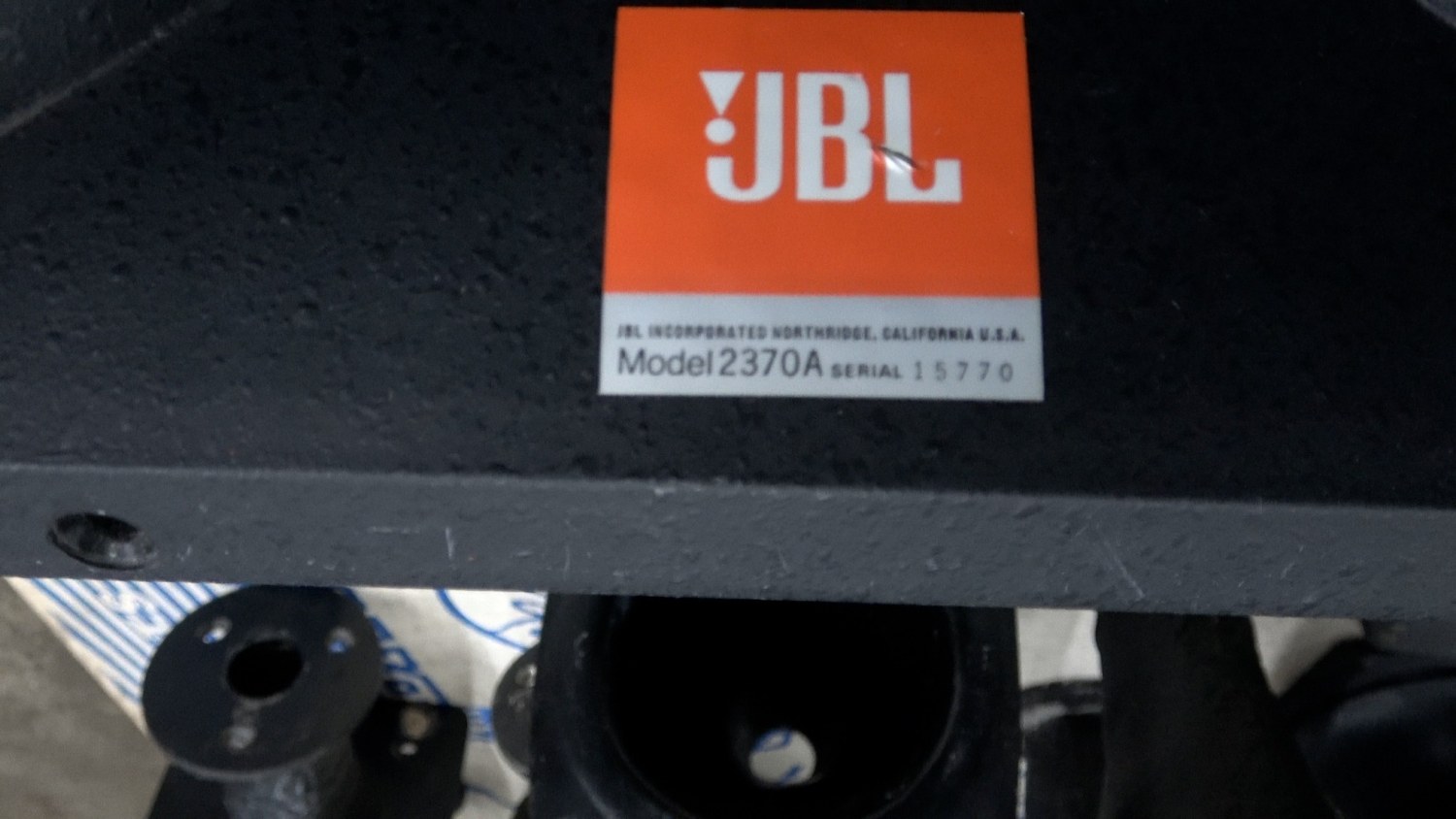

JBL 2370A model label.
Qty 5

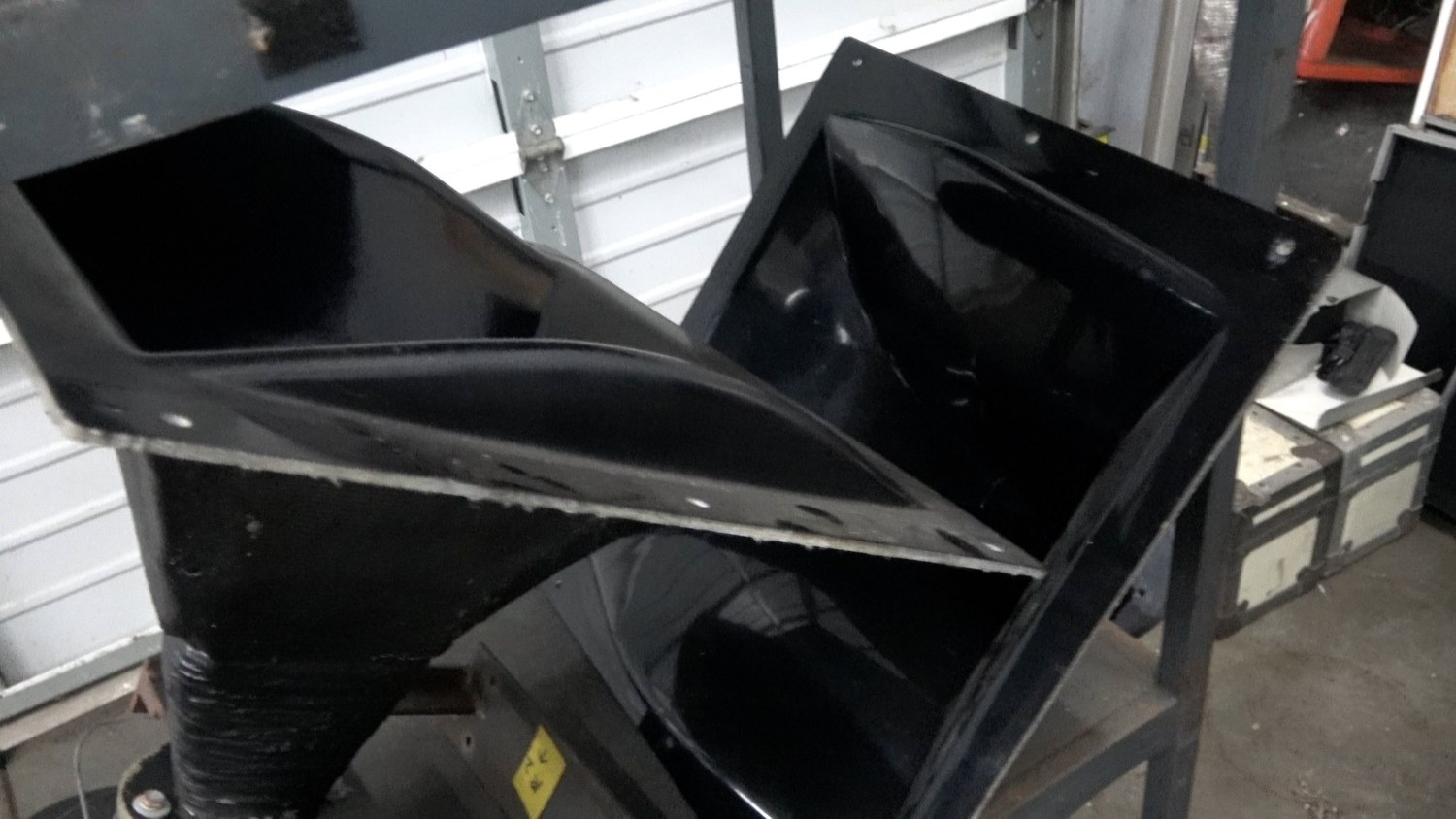

DDS / Electro Tec Lab-Q Horns
Large DDS horns associated with the Electro Tec Lab-Q systems. Dimensions in the updated master inventory: approximately 18¼ × 20 × 14 inches.
Side/construction view.
Qty 2

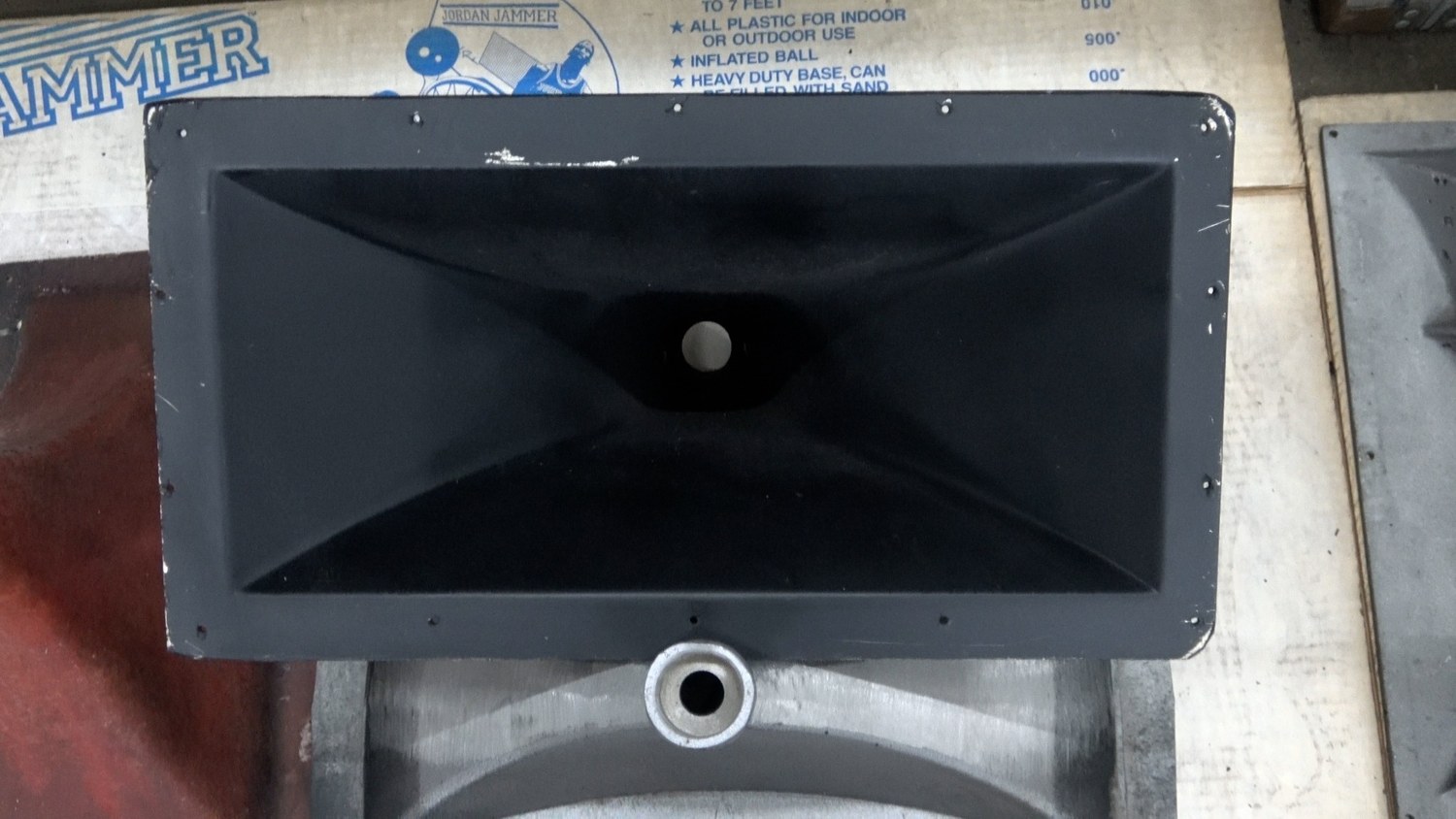

Fiberglass 1-Inch Screw-On Horns
Unidentified fiberglass screw-on horns. Approx. 9½ × 17¾ × 12 inches.

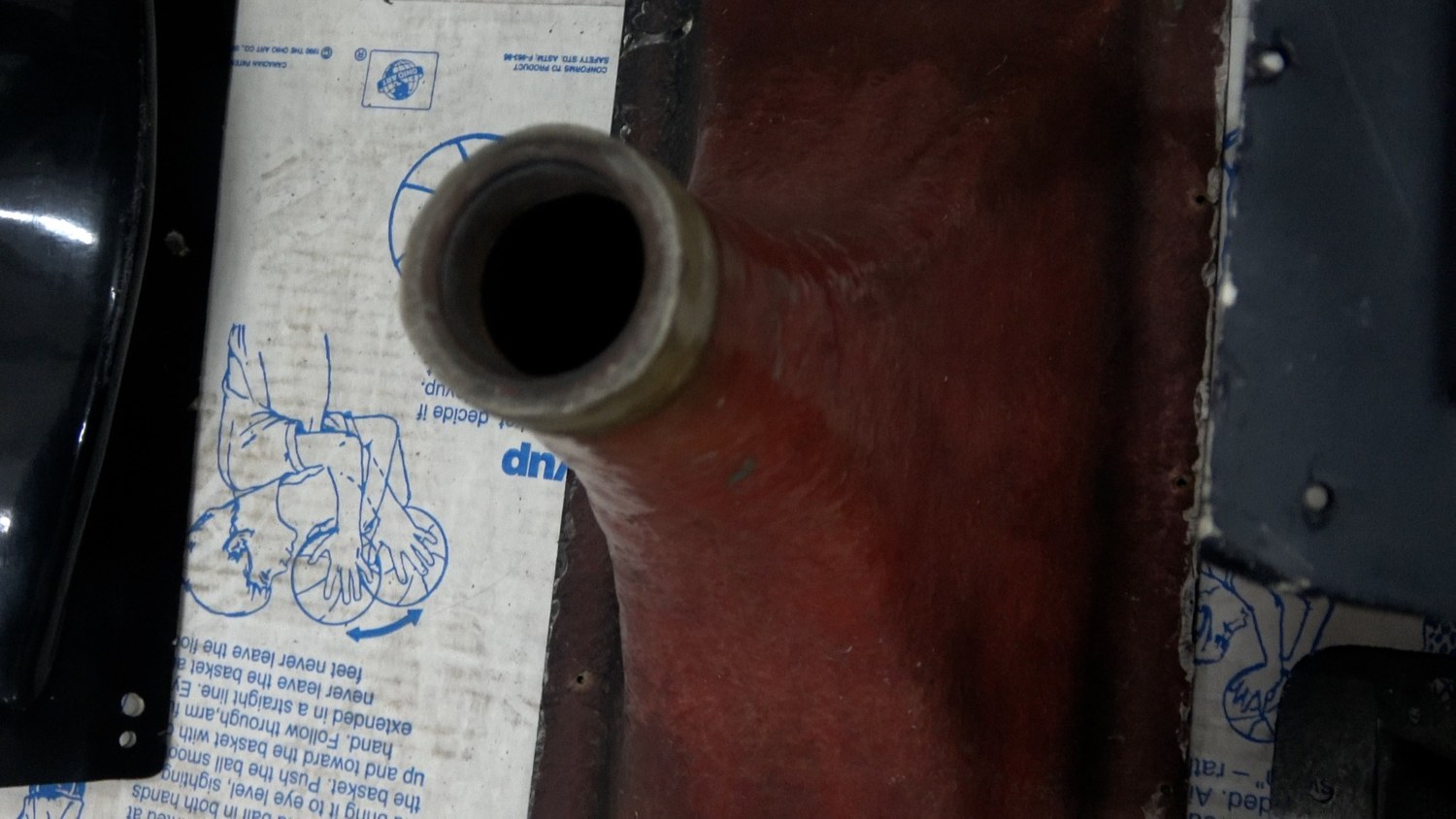

Threaded throat detail.
Qty 1

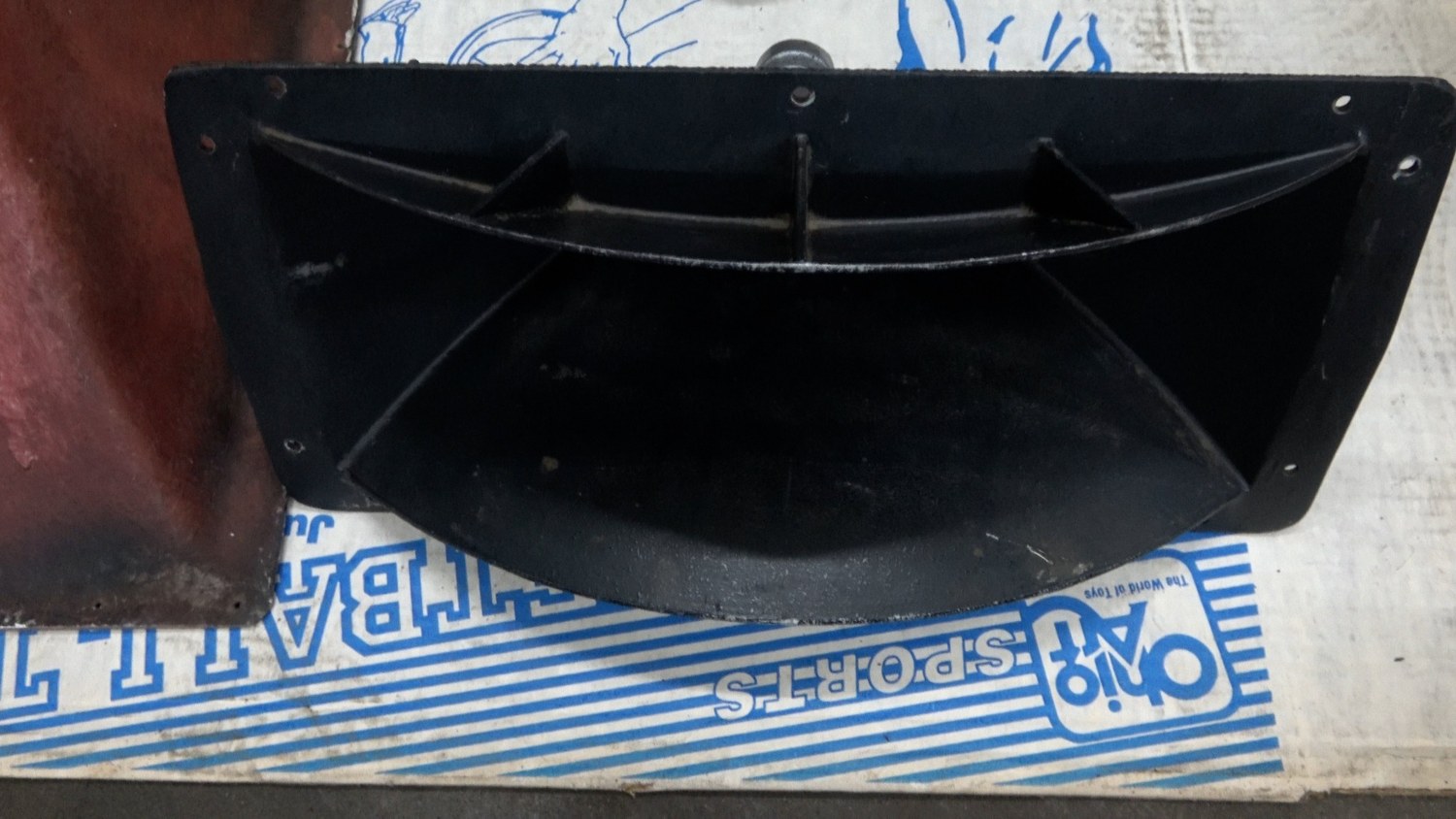

Metal 1-Inch Screw-On Horn
Unidentified metal screw-on horn. Approx. 9 × 19 × 12½ inches.
Questions or interest? Contact by emailQty 8

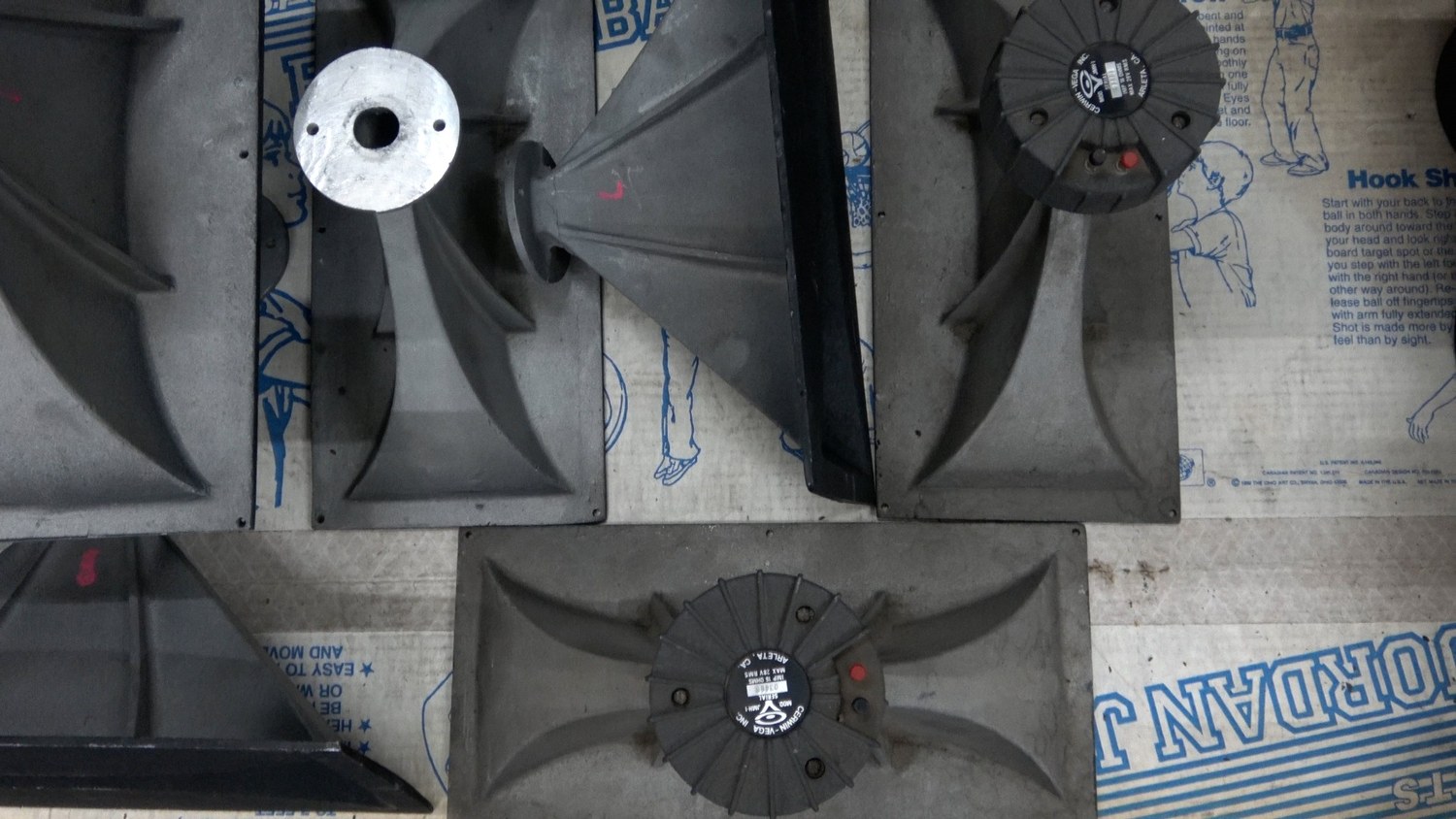

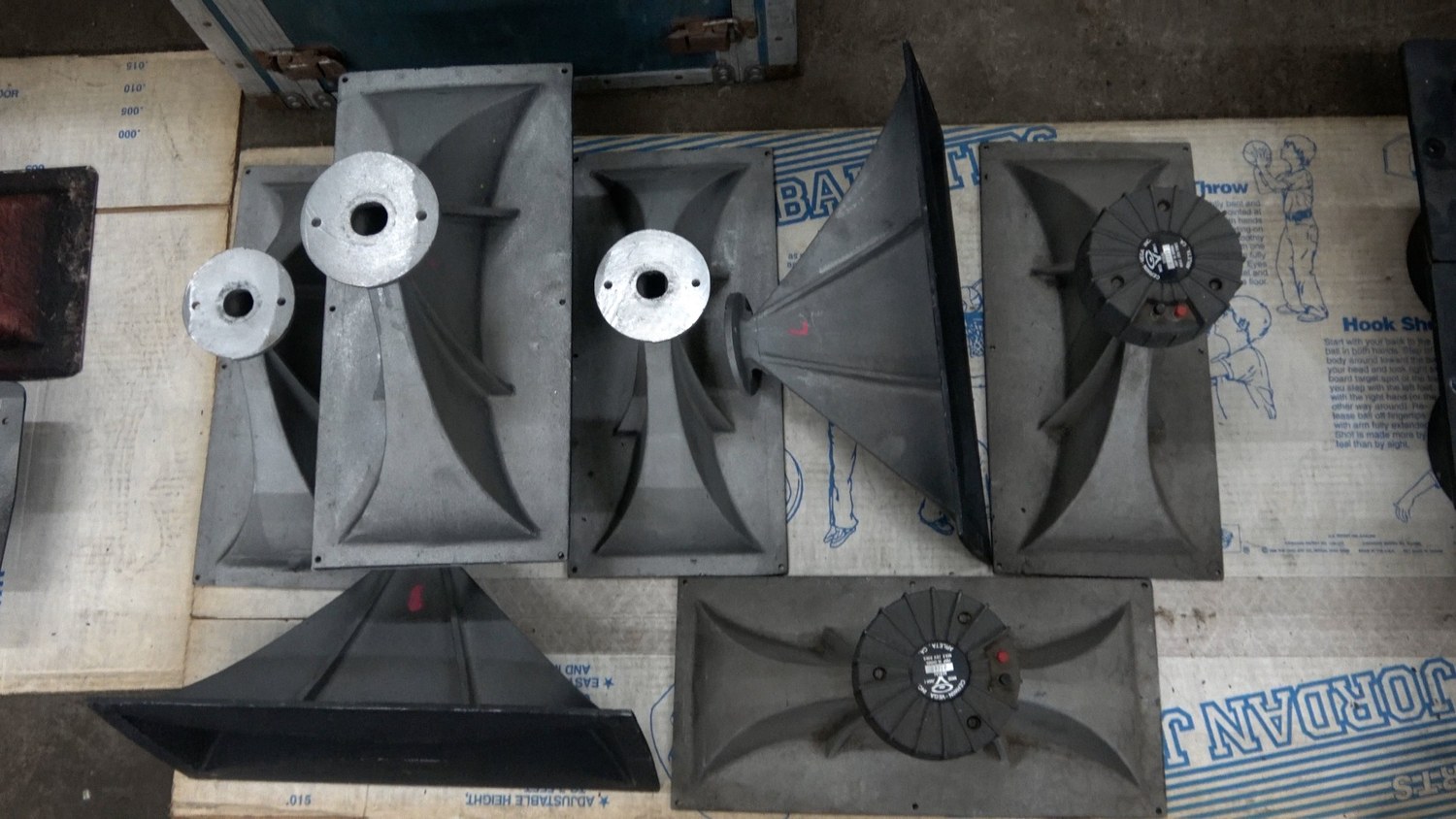

Modified 1-Inch Metal Horns
Metal one-inch horns with shaved/modified front edges. Approx. 8½ × 17¾ × 8¼ inches.
Two shown with Cerwin-Vega drivers attached.
Qty 2

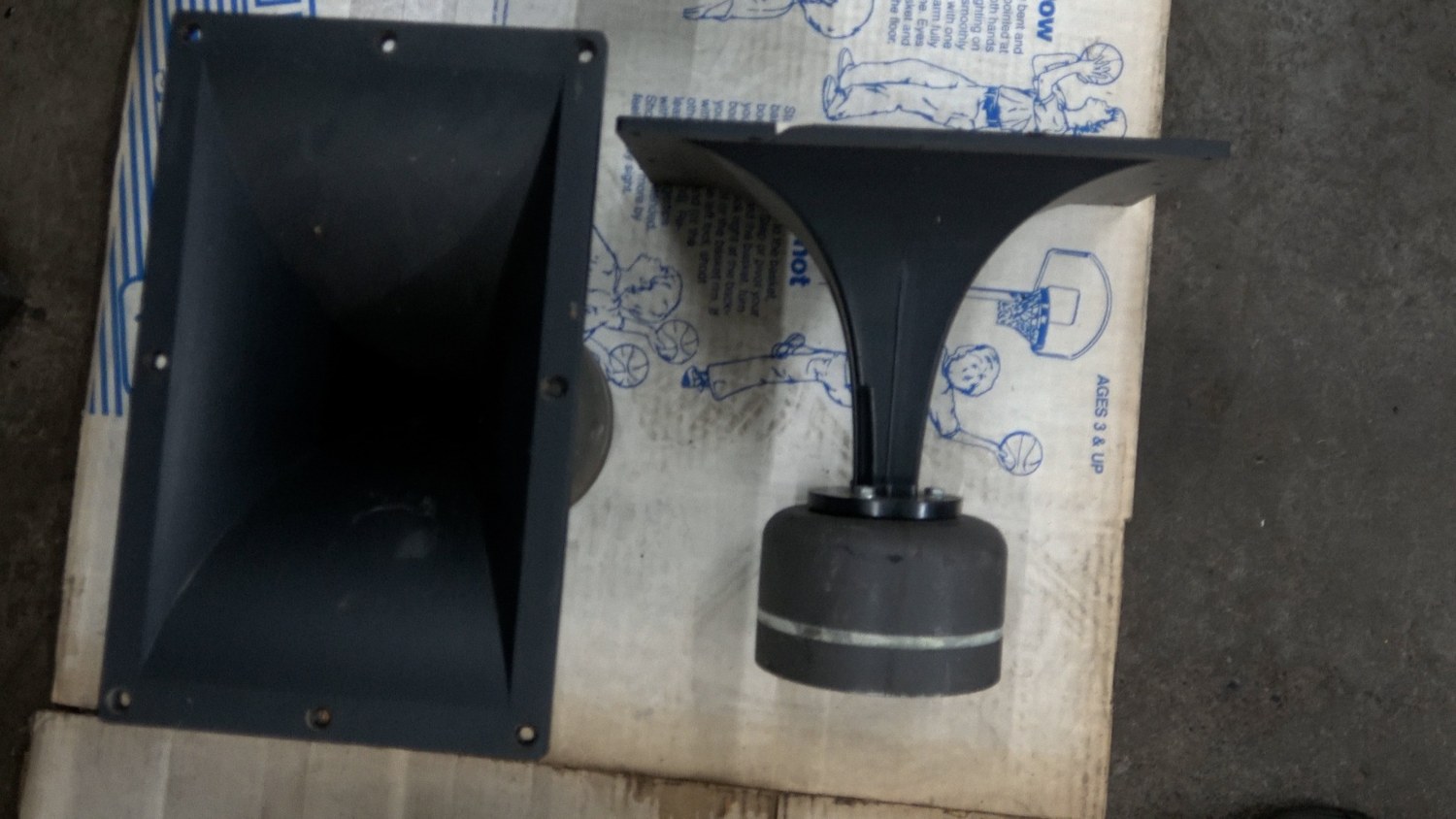

Horns Attached to JBL 2470 Drivers
Pair of one-inch horns currently documented with the JBL 2470 compression drivers.
Questions or interest? Contact by emailQty 2

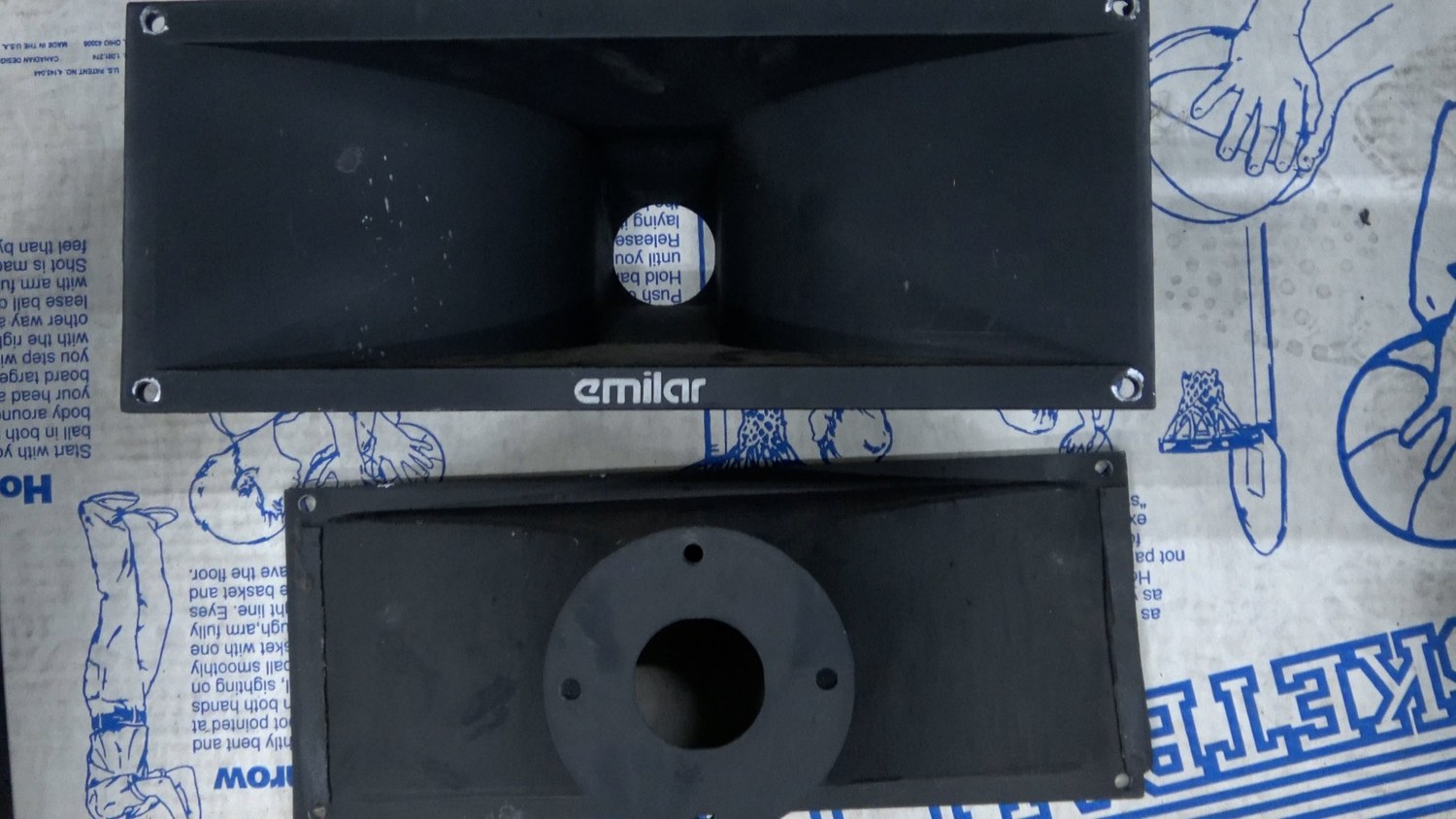

Emilar EH 820 Horns
Two-inch Emilar horns. Approx. 6⅝ × 16¼ × 6¾ inches.

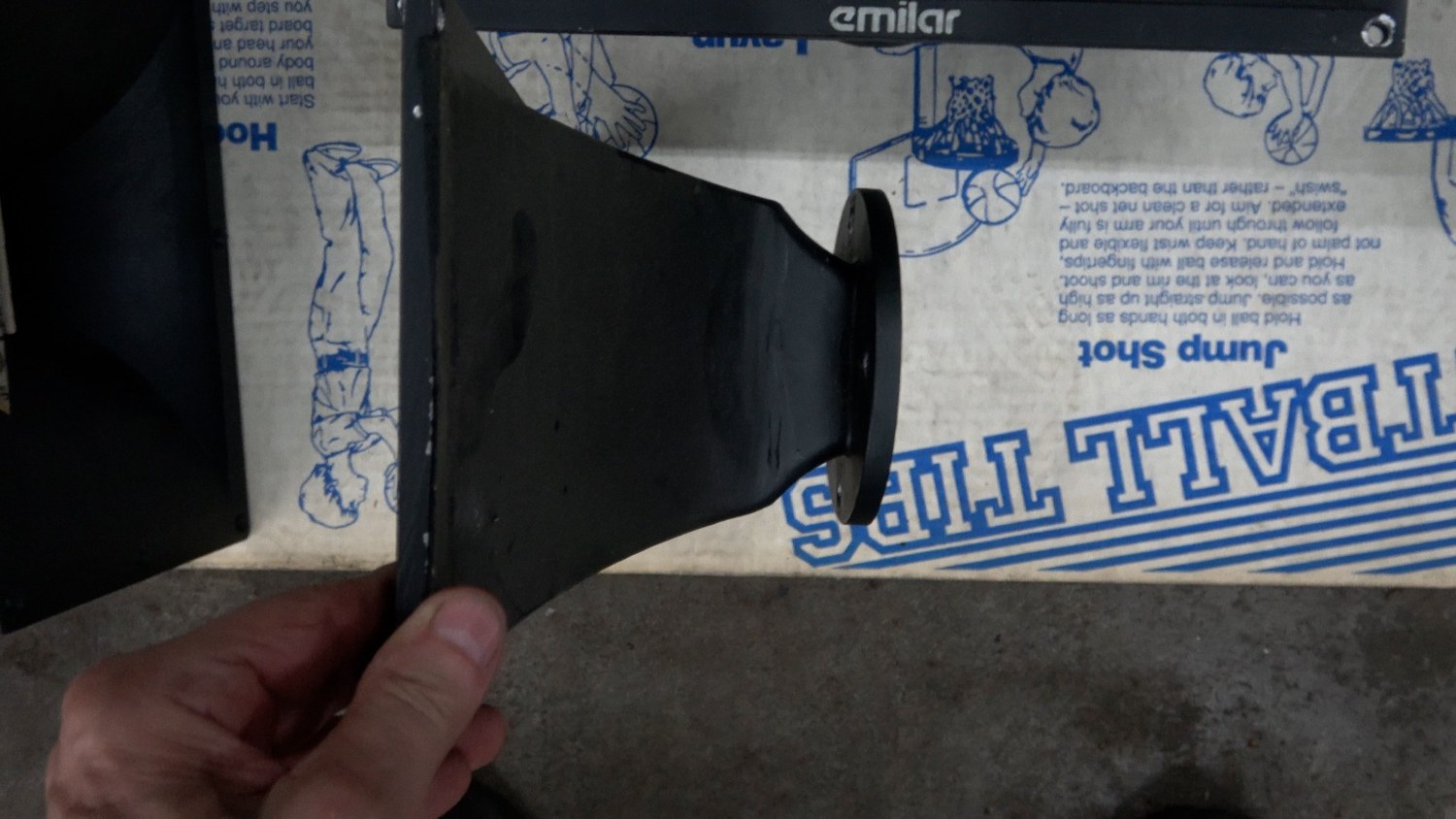

Side view.
Qty 2

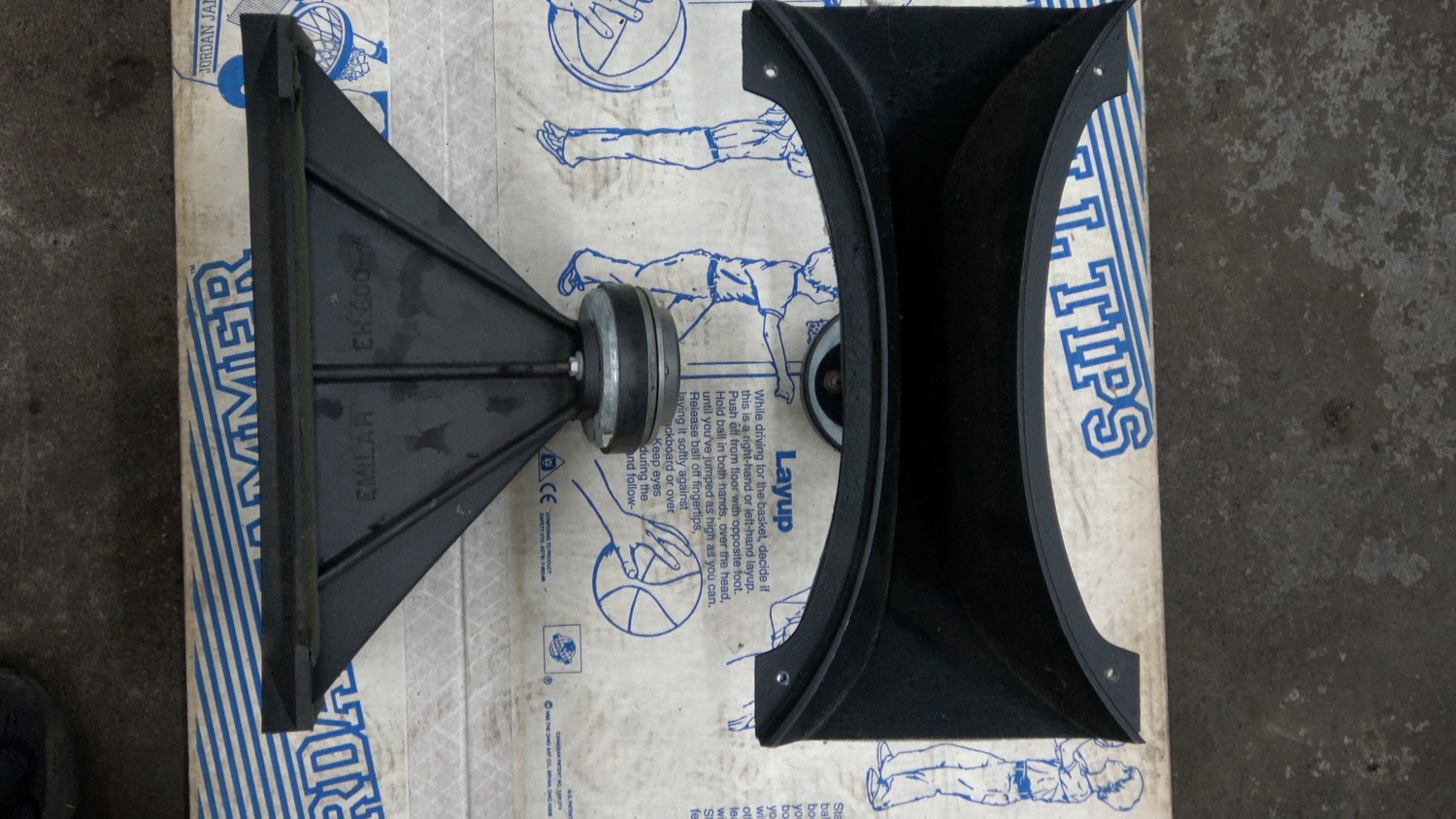

Emilar EH 600-A Horns
One-inch metal Emilar horns. Approx. 8½ × 15½ × 8¼ inches.

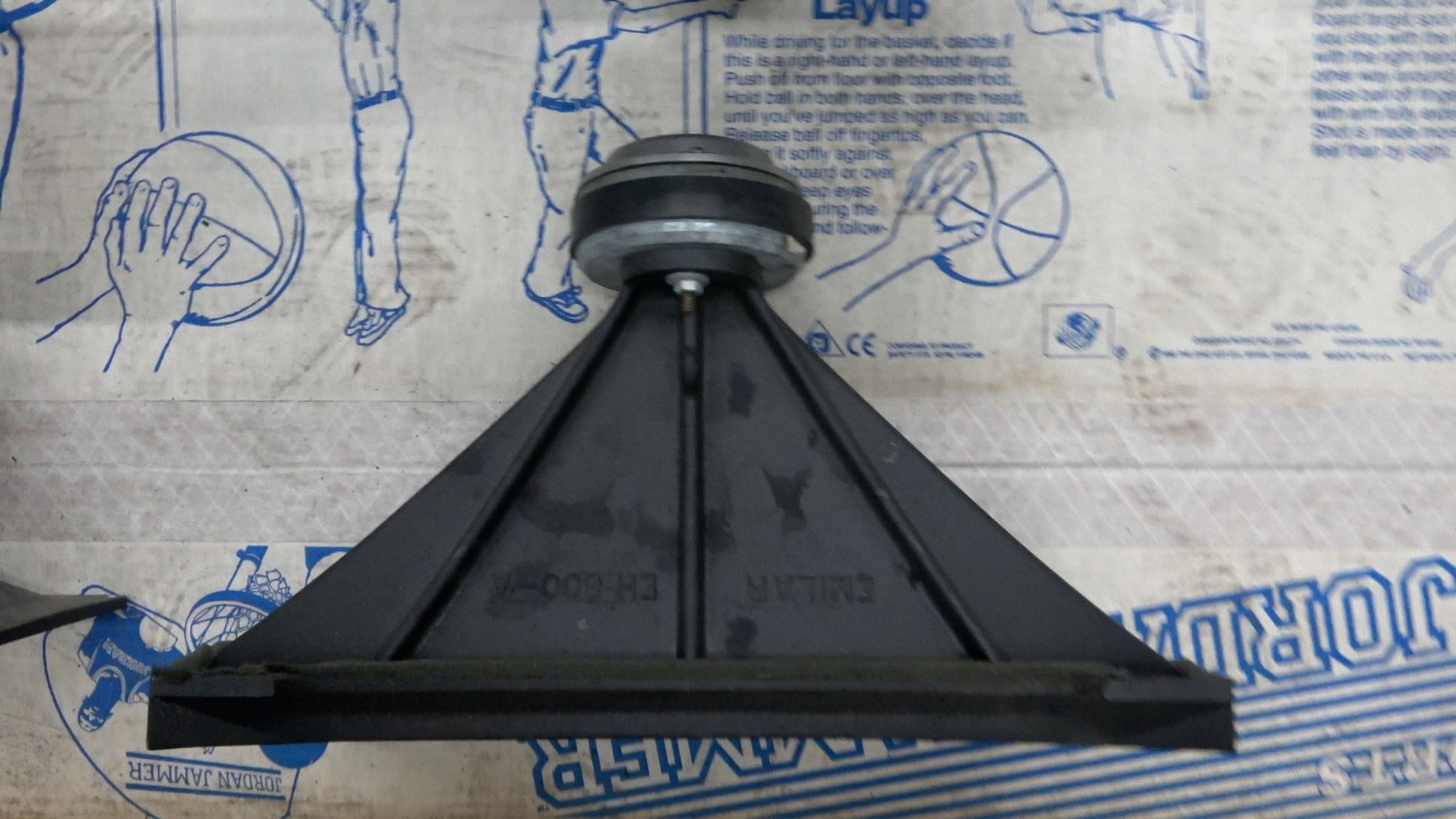

Cast model marking.
Qty 2

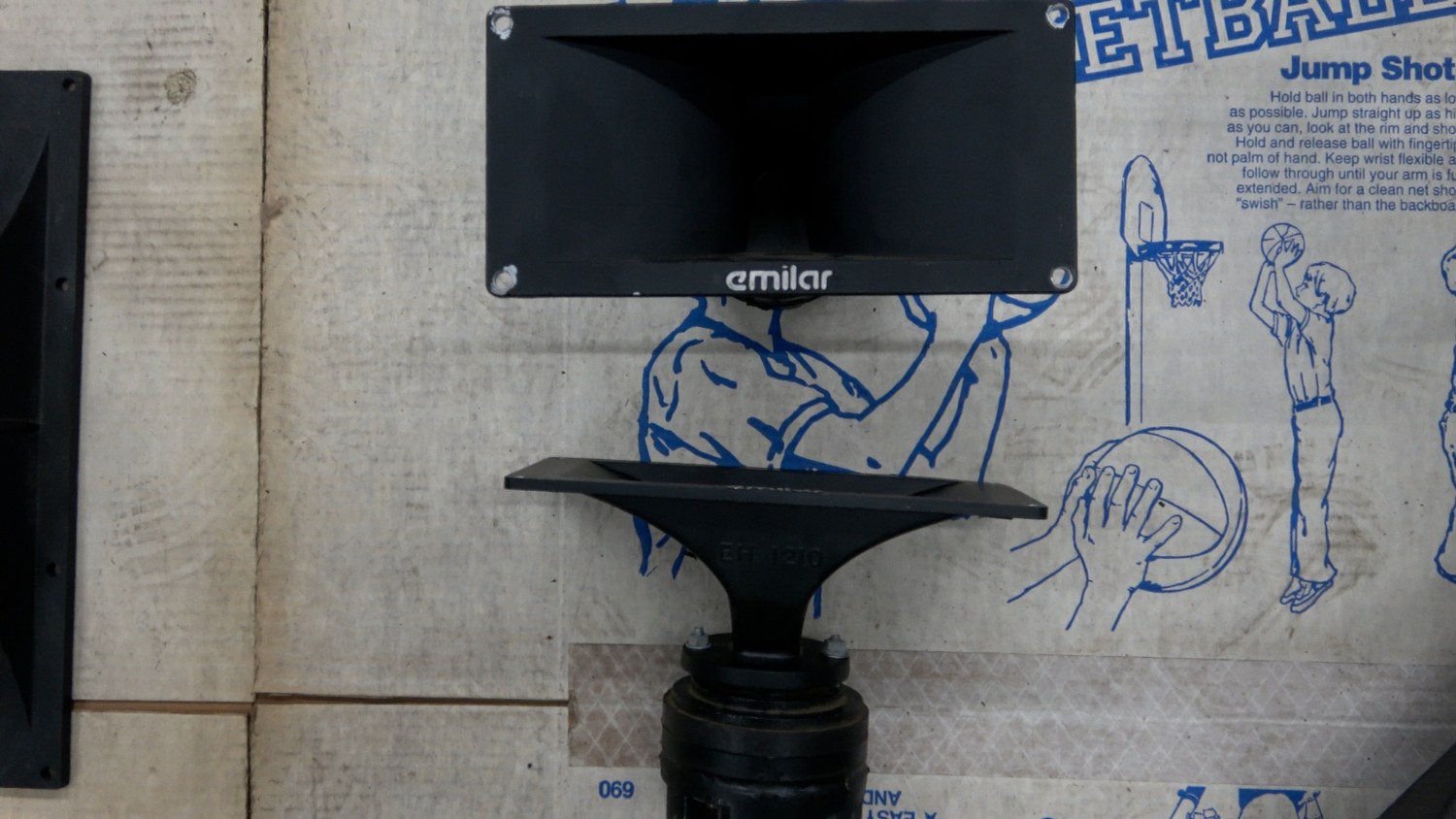

Emilar EH 1210 Horns
One-inch metal Emilar horns. Approx. 5½ × 11 × 4½ inches.

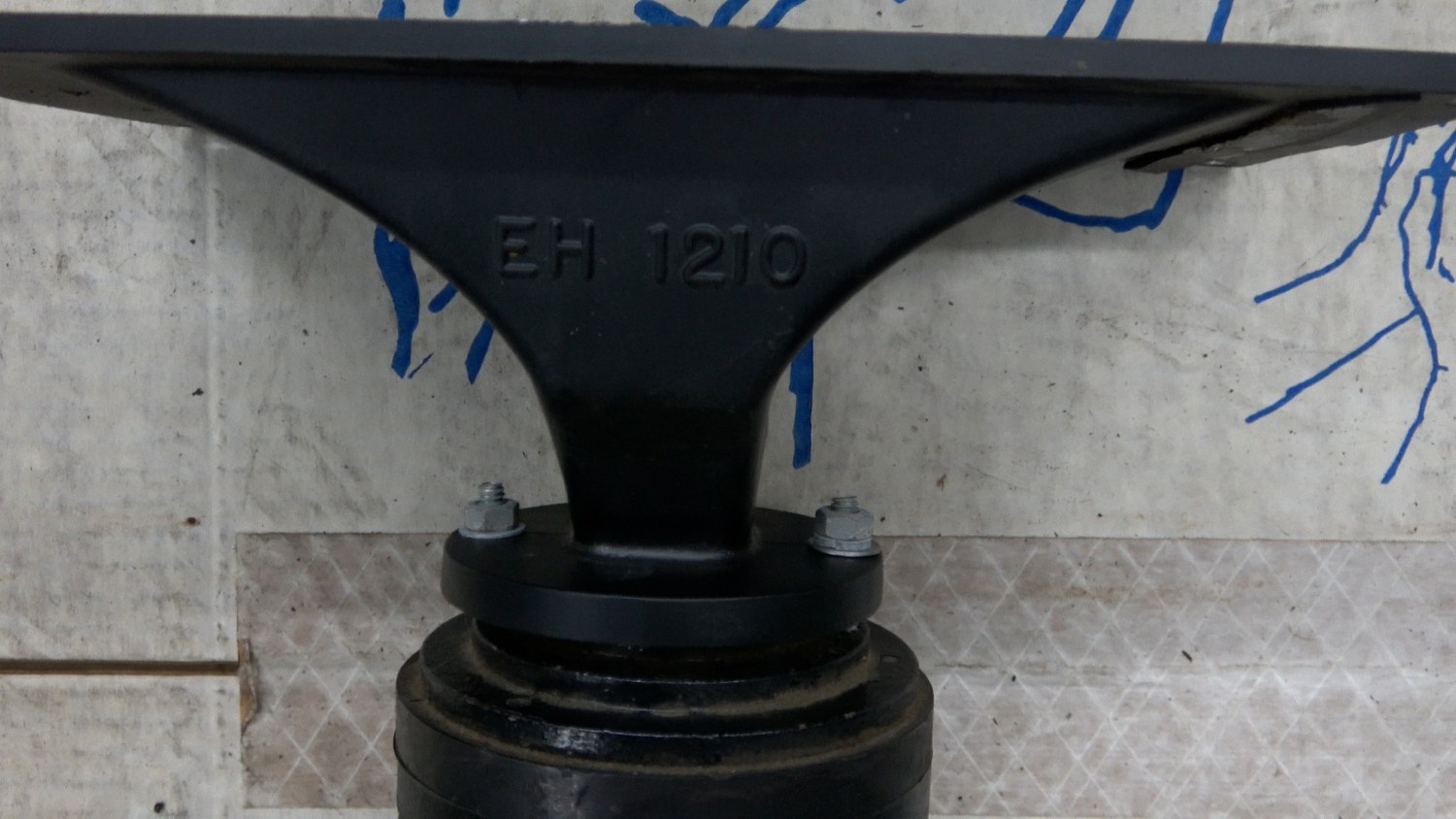

Cast model marking.
Qty 1

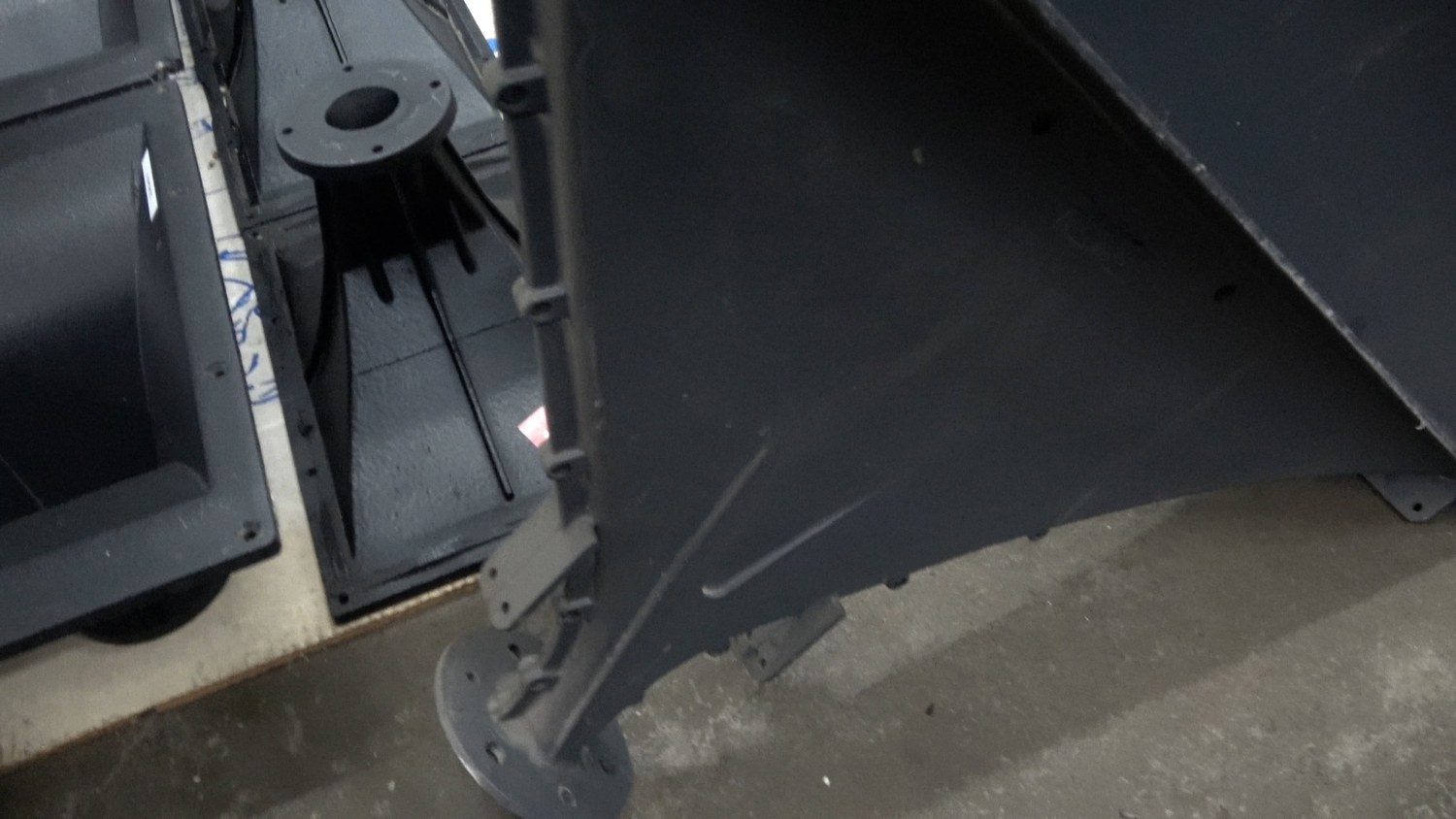

RAMSA WS-711 Radial Horn
Panasonic / RAMSA radial horn, model WS-711, made in Japan.
Manufacturer/model label.
Qty 4

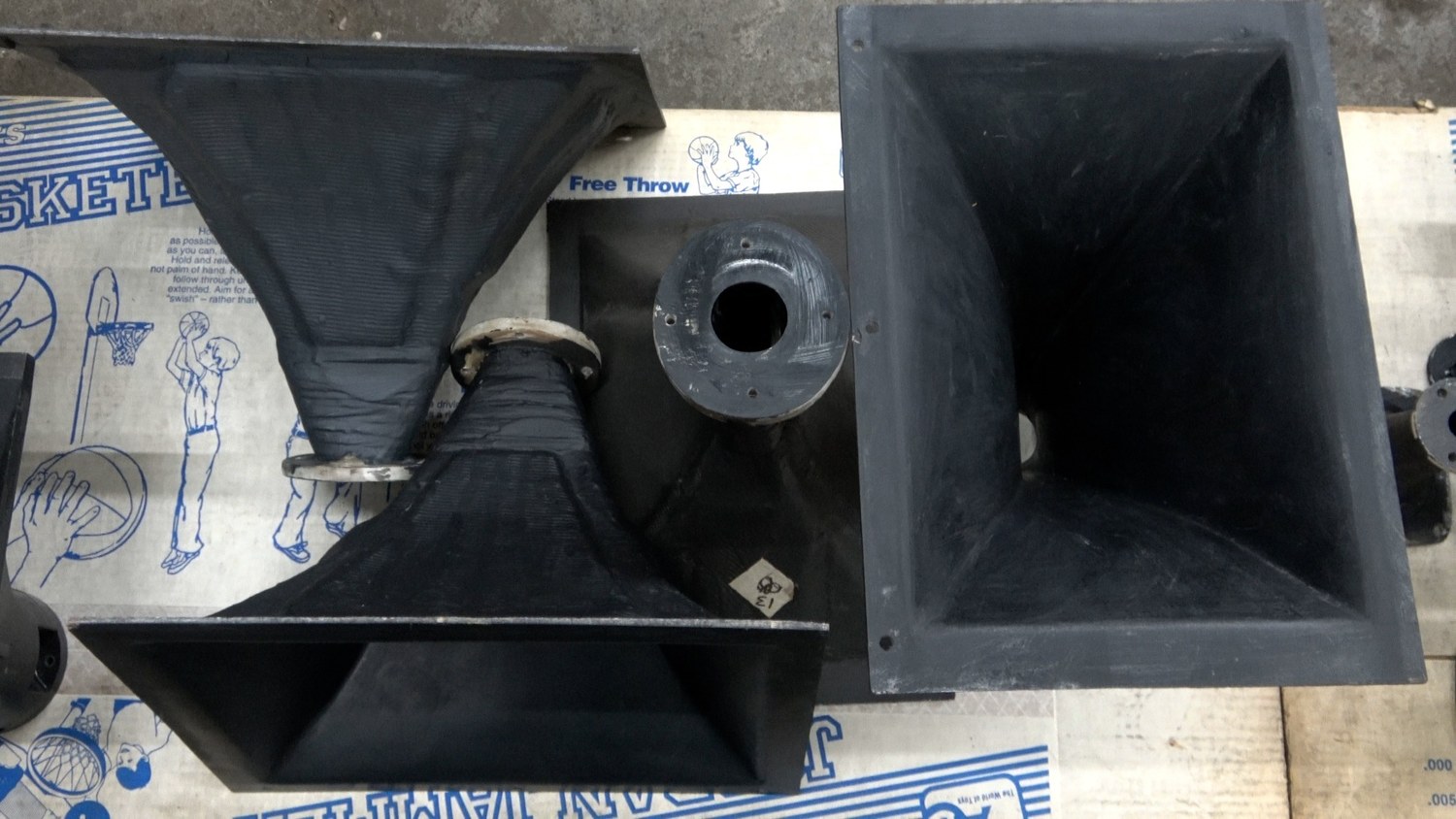

Electro Tec R&D 2-Inch Horns — Matching Set
Matching 2-inch JBL-type horns from Electro Tec R&D. Approx. 13⅛ × 18⅛ × 12¾ inches.
Questions or interest? Contact by emailQty 2

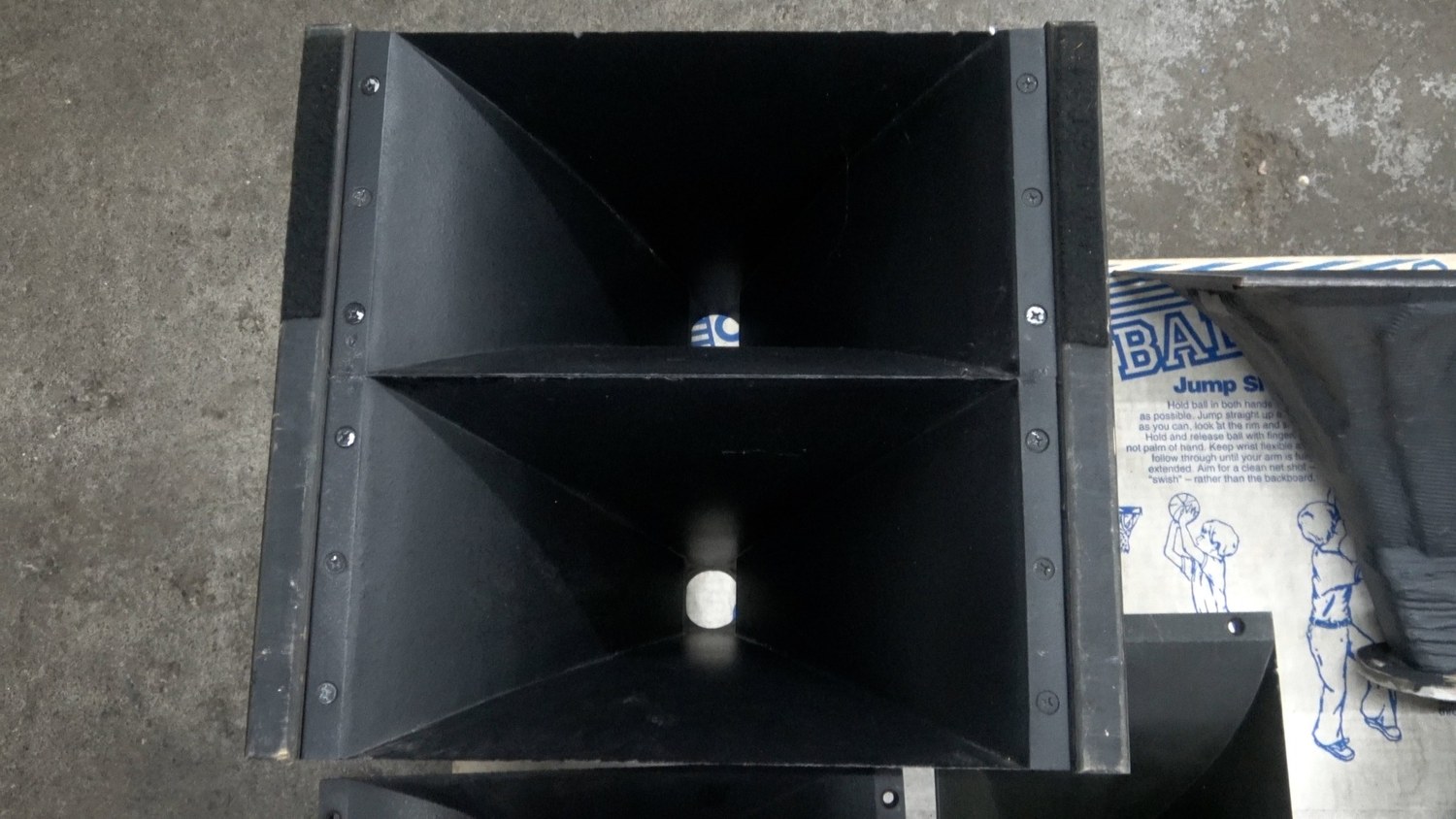

Electro Tec R&D 2-Inch Horns — Pair
Paired 2-inch JBL-type horns from Electro Tec R&D. Approx. 9 × 17½ × 14½ inches.
Questions or interest? Contact by emailQty 2

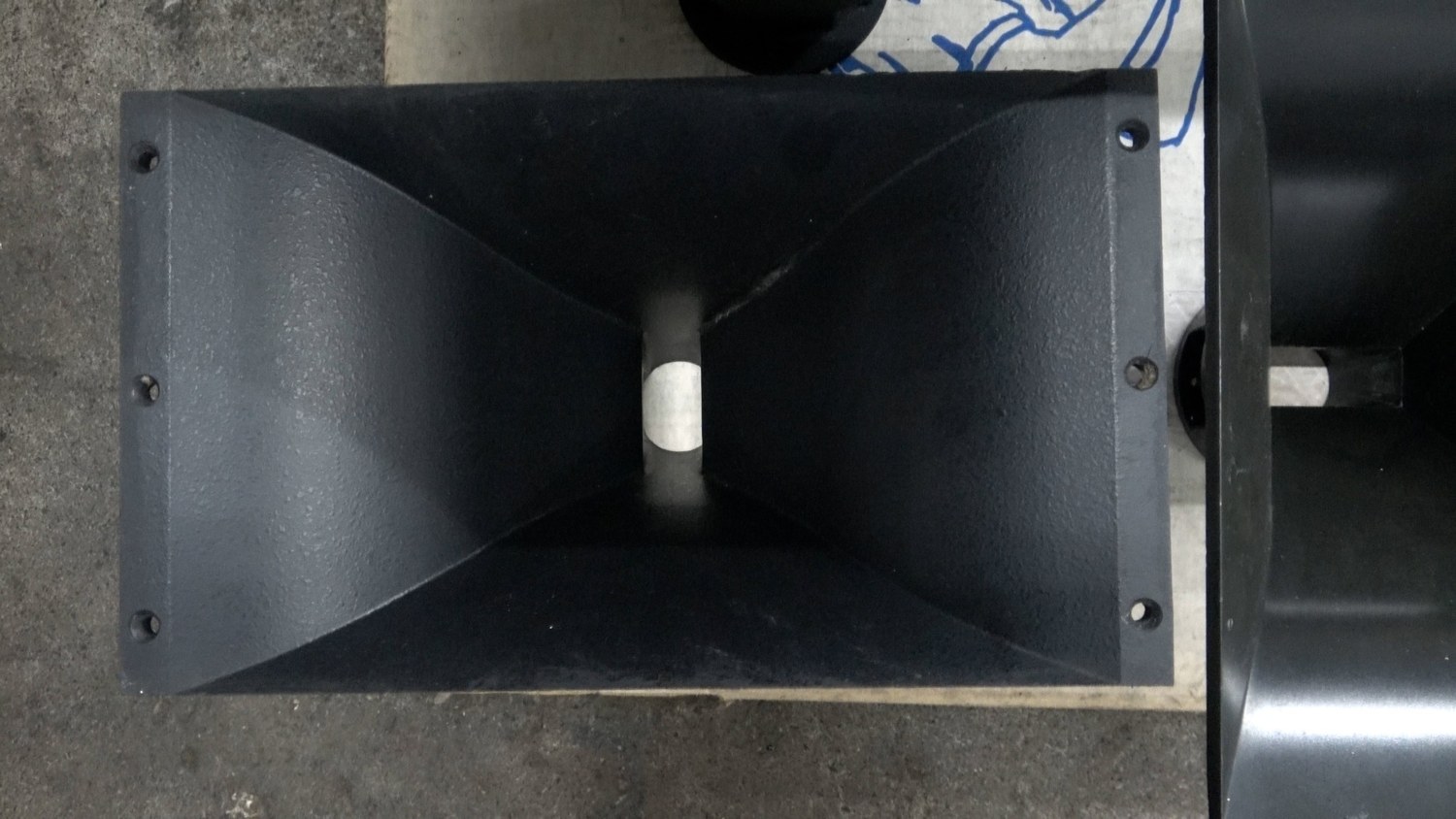

Electro Tec R&D 2-Inch Horns — Smaller Pair
Smaller pair of 2-inch JBL-type horns from Electro Tec R&D. Approx. 9 × 15½ × 9¼ inches.
Questions or interest? Contact by emailQty 2

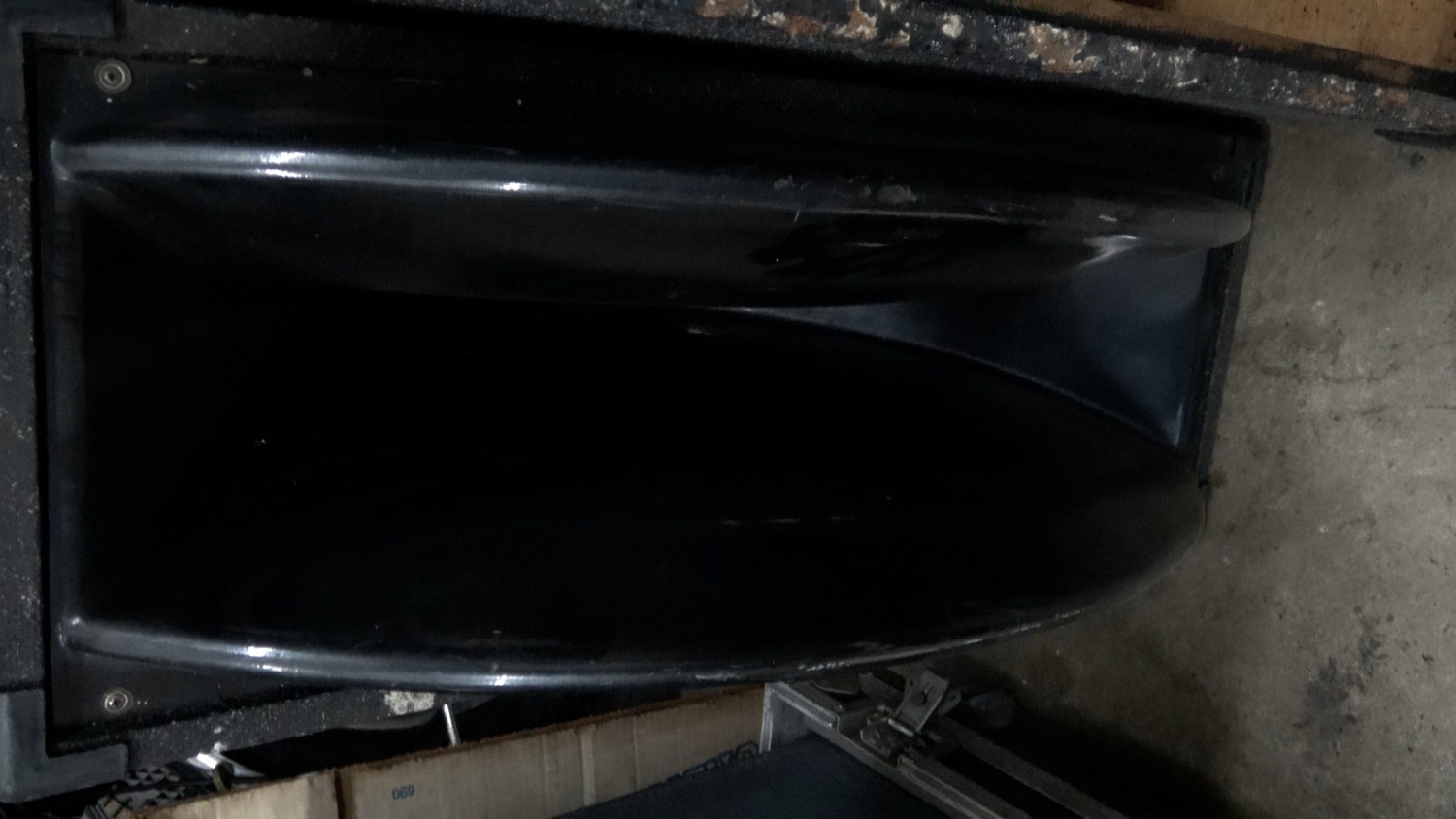

Original Sunn Horns with JBL 2440 Drivers — 1971
Original large Sunn horns from the 1971 touring system, preserved with the JBL 2440 compression drivers. Approx. 11 × 32 × 16 inches.

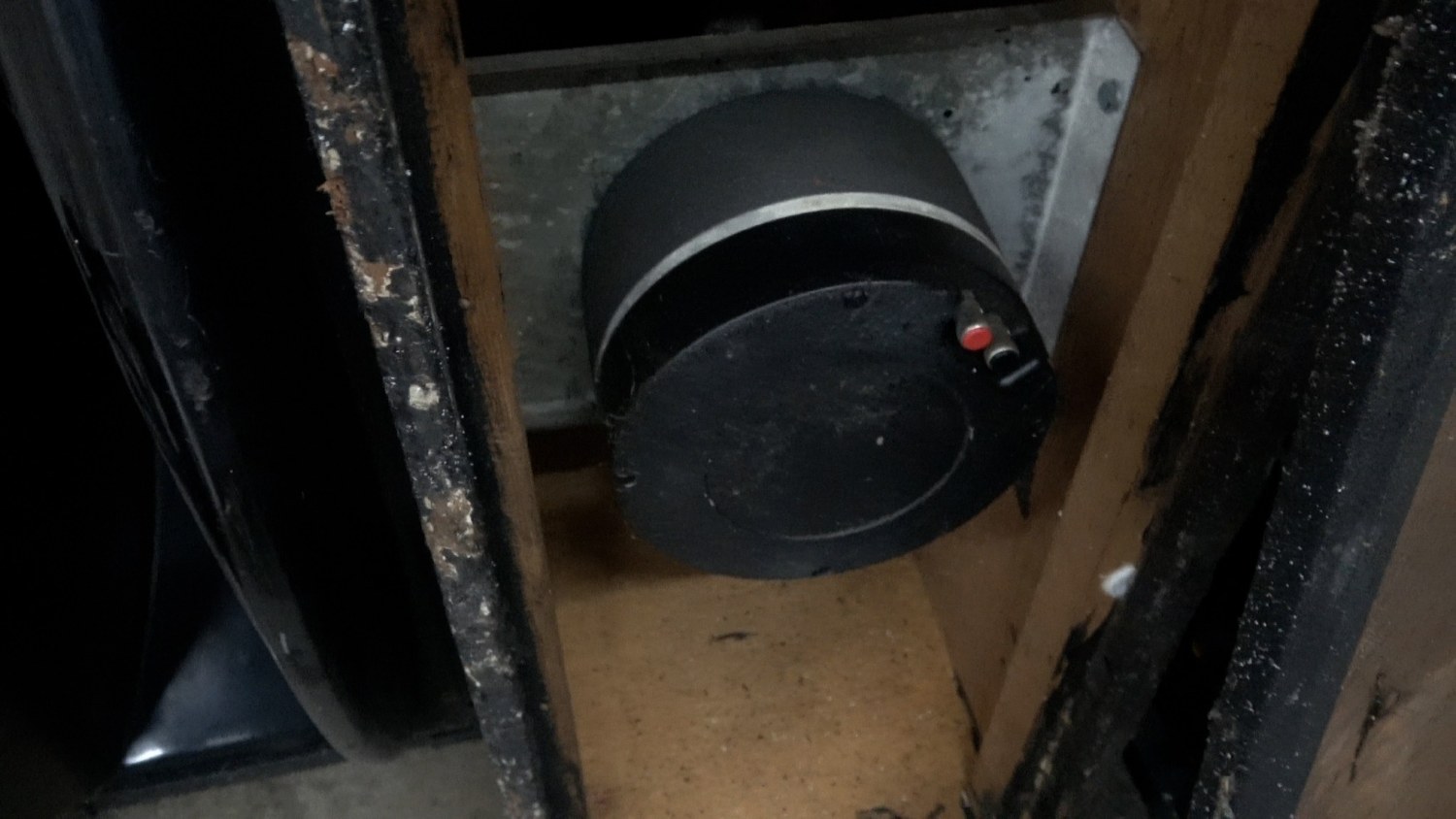

Rear view with JBL 2440 attached.
Qty 2

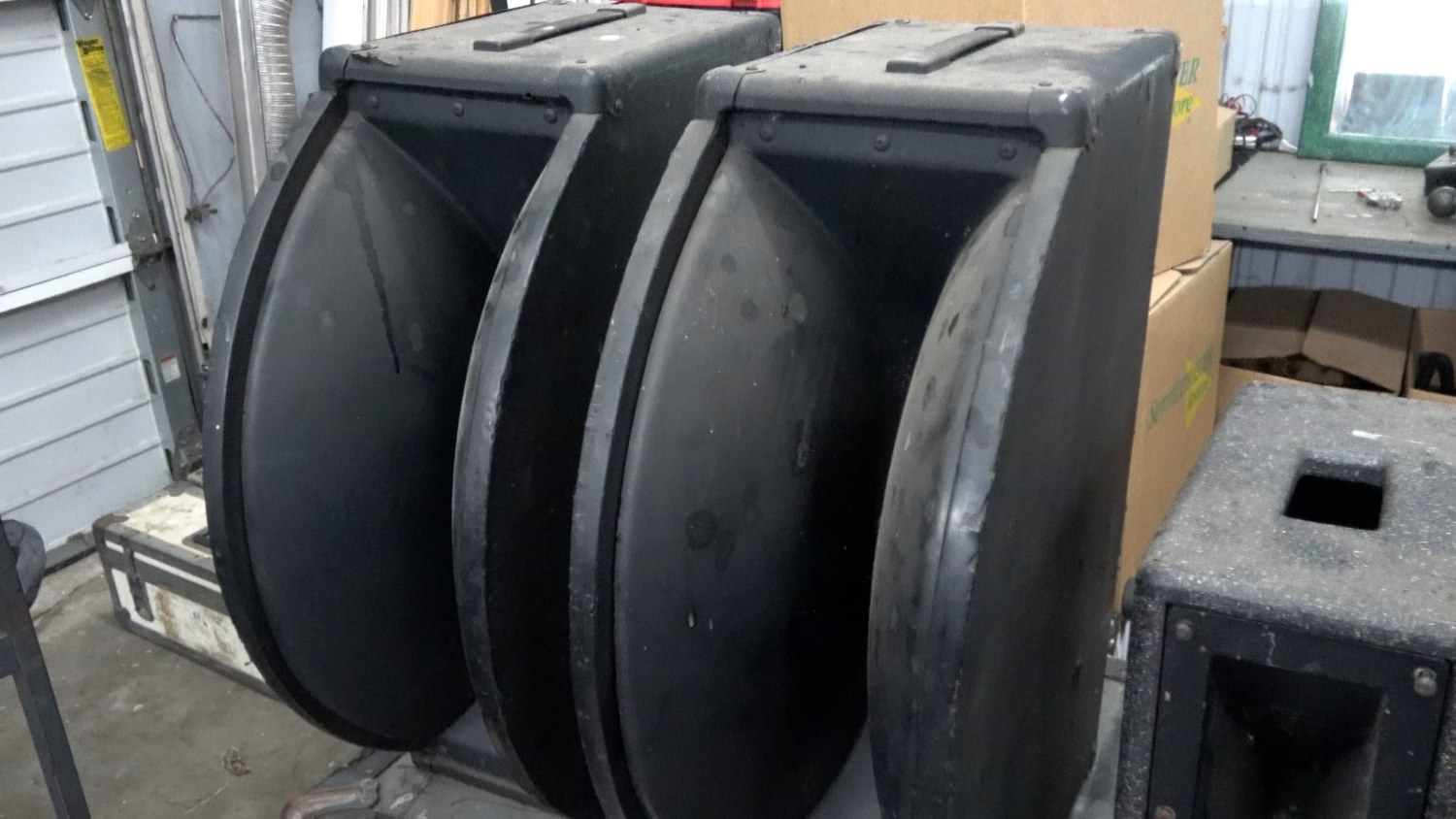

Carvin C-801 Assemblies
Pair documented with Carvin C-801 rear panels; panel identifies an 800 Hz crossover and horn attenuation control.

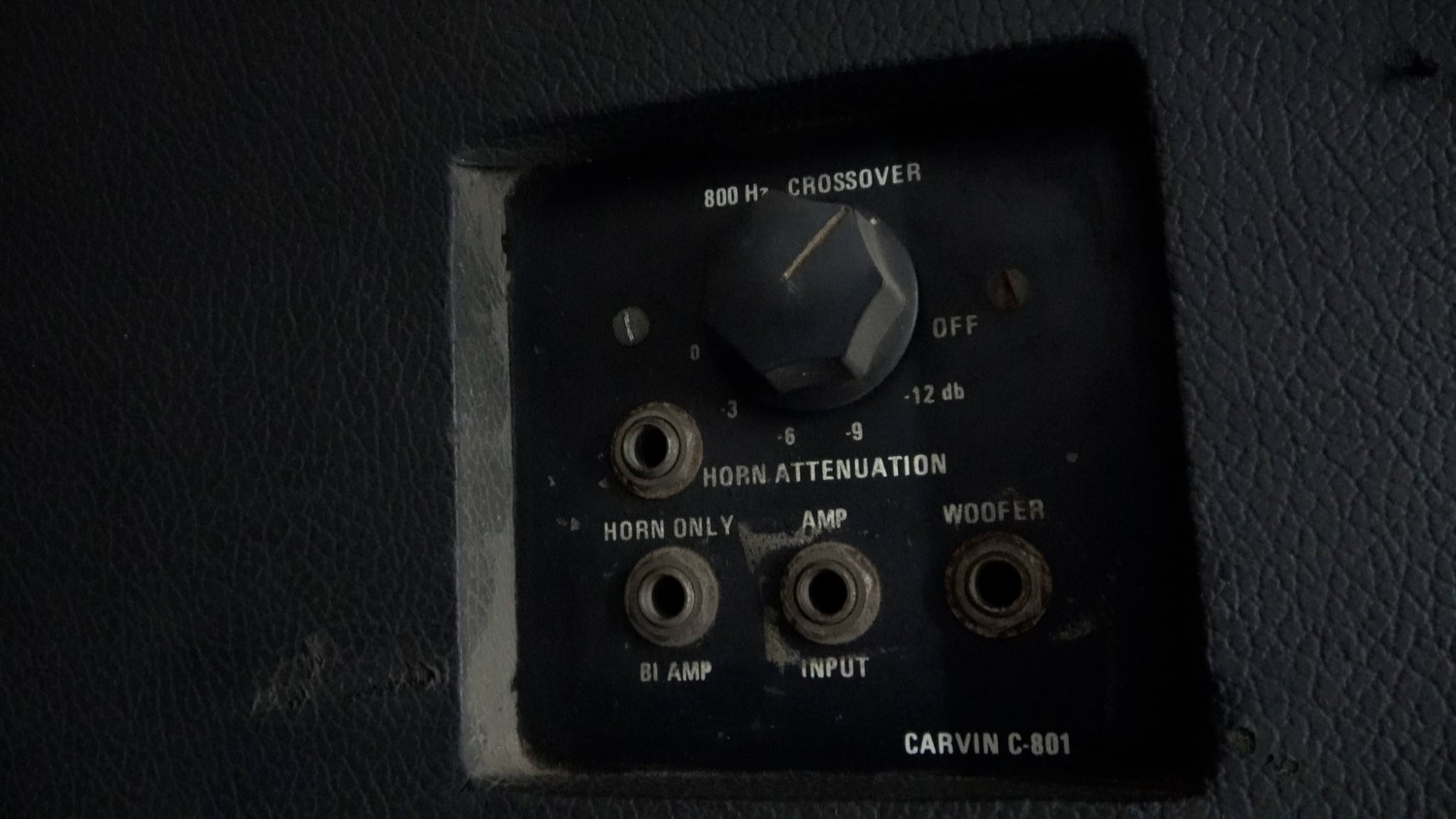

Carvin C-801 rear panel.
Qty 2

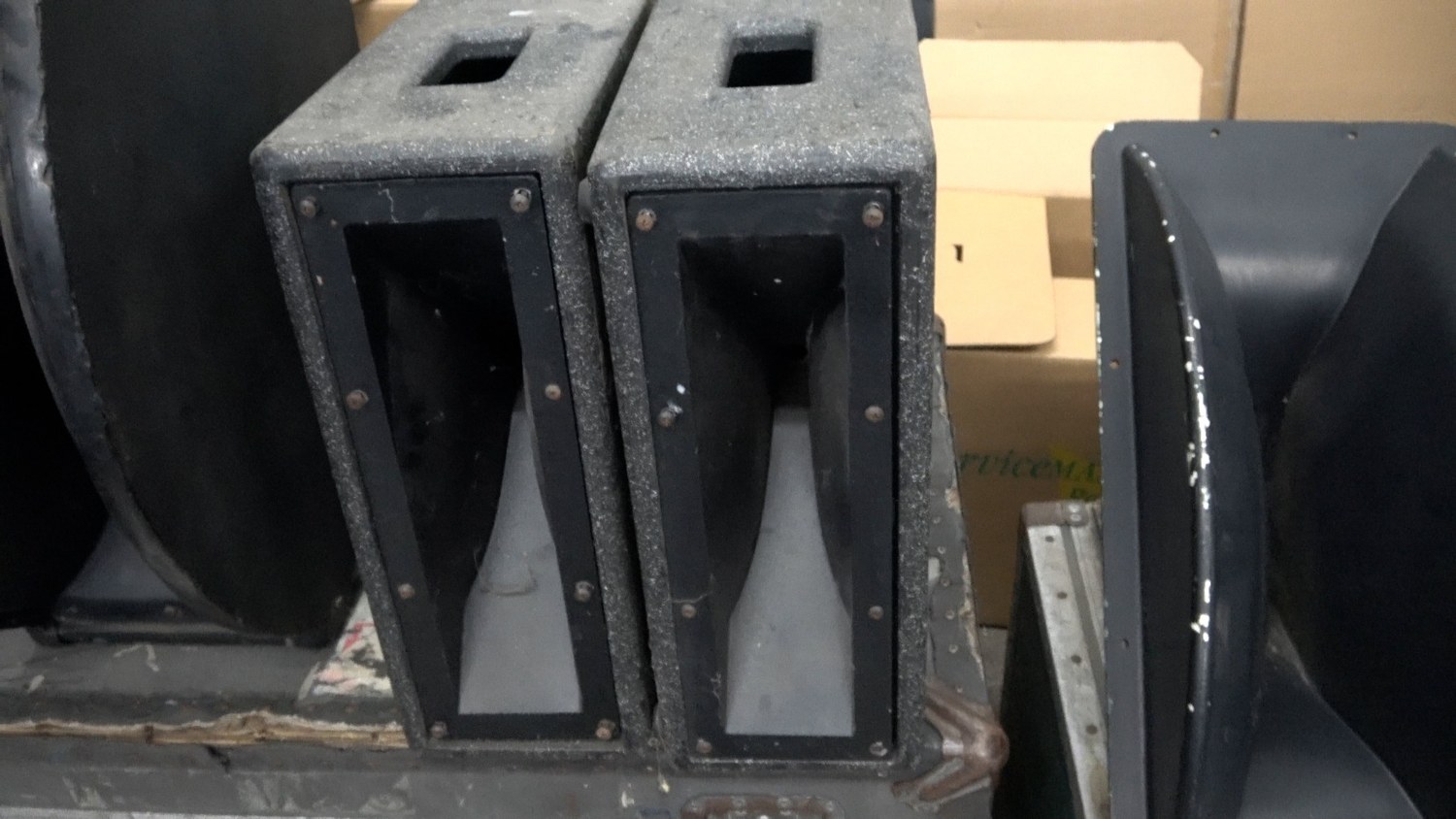

Small 1-Inch Horns Formerly Used with JBL 2426J
Unidentified small one-inch horns formerly used with JBL 2426J drivers. Approx. 5½ × 17 × 9 inches.
Questions or interest? Contact by emailQty 2

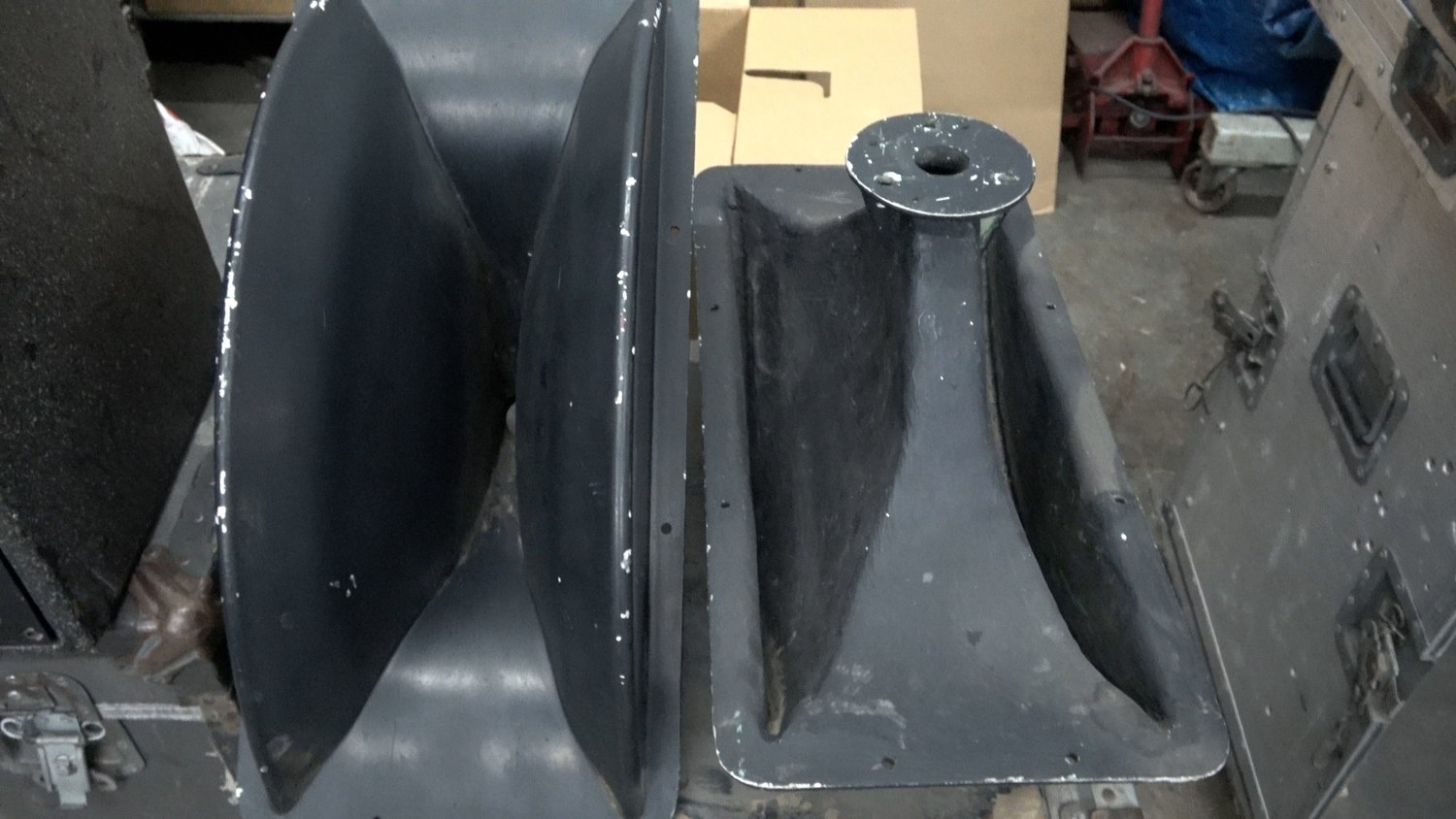

Large 1-Inch Metal Horns — Unidentified
Pair of unidentified one-inch metal horns. Approx. 11 × 24 × 13½ inches.
Questions or interest? Contact by emailQty 10

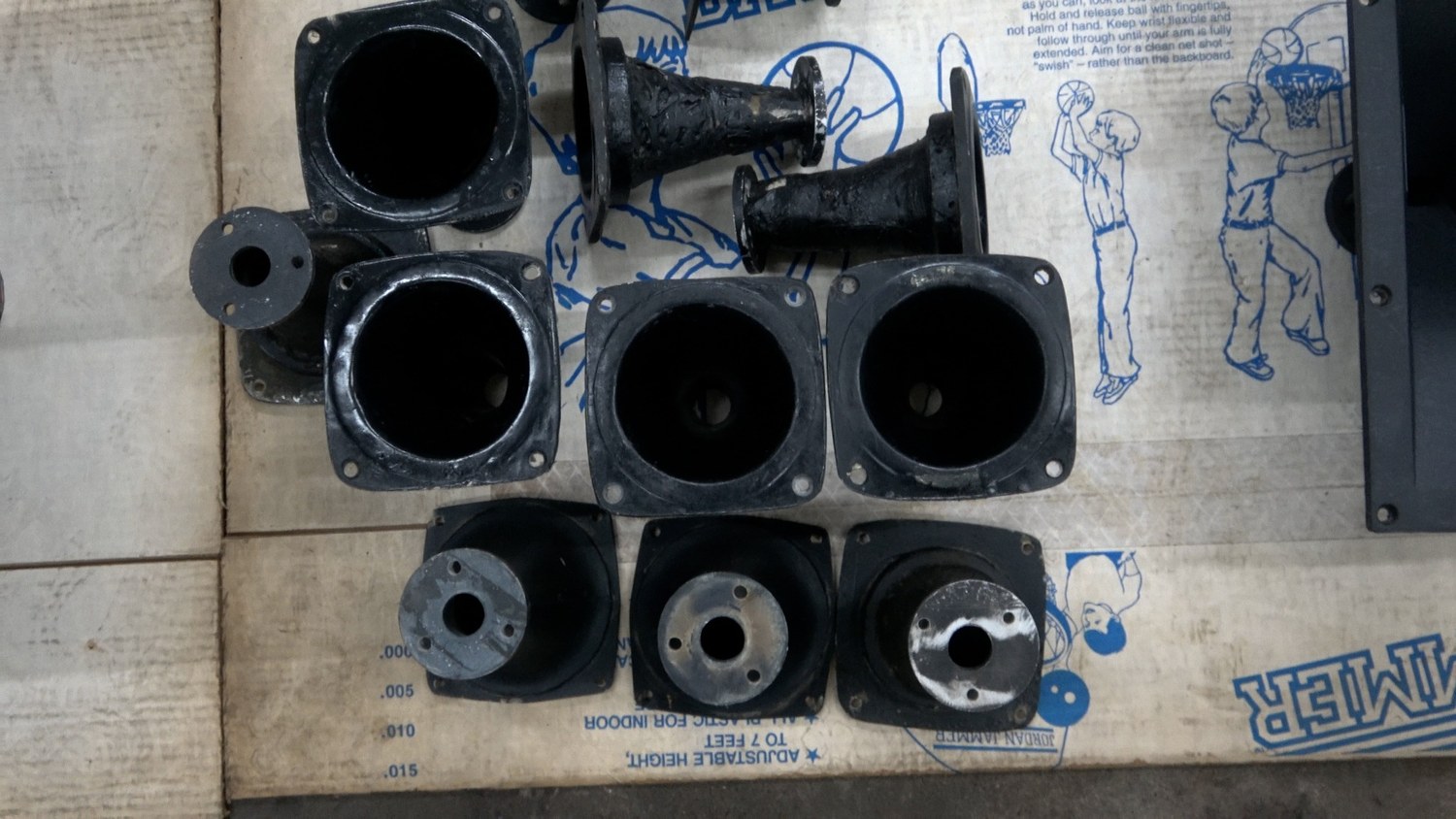

1-Inch Horn Throats / Adapters
Group of ten one-inch throat / adapter pieces.
Questions or interest? Contact by emailQty 2

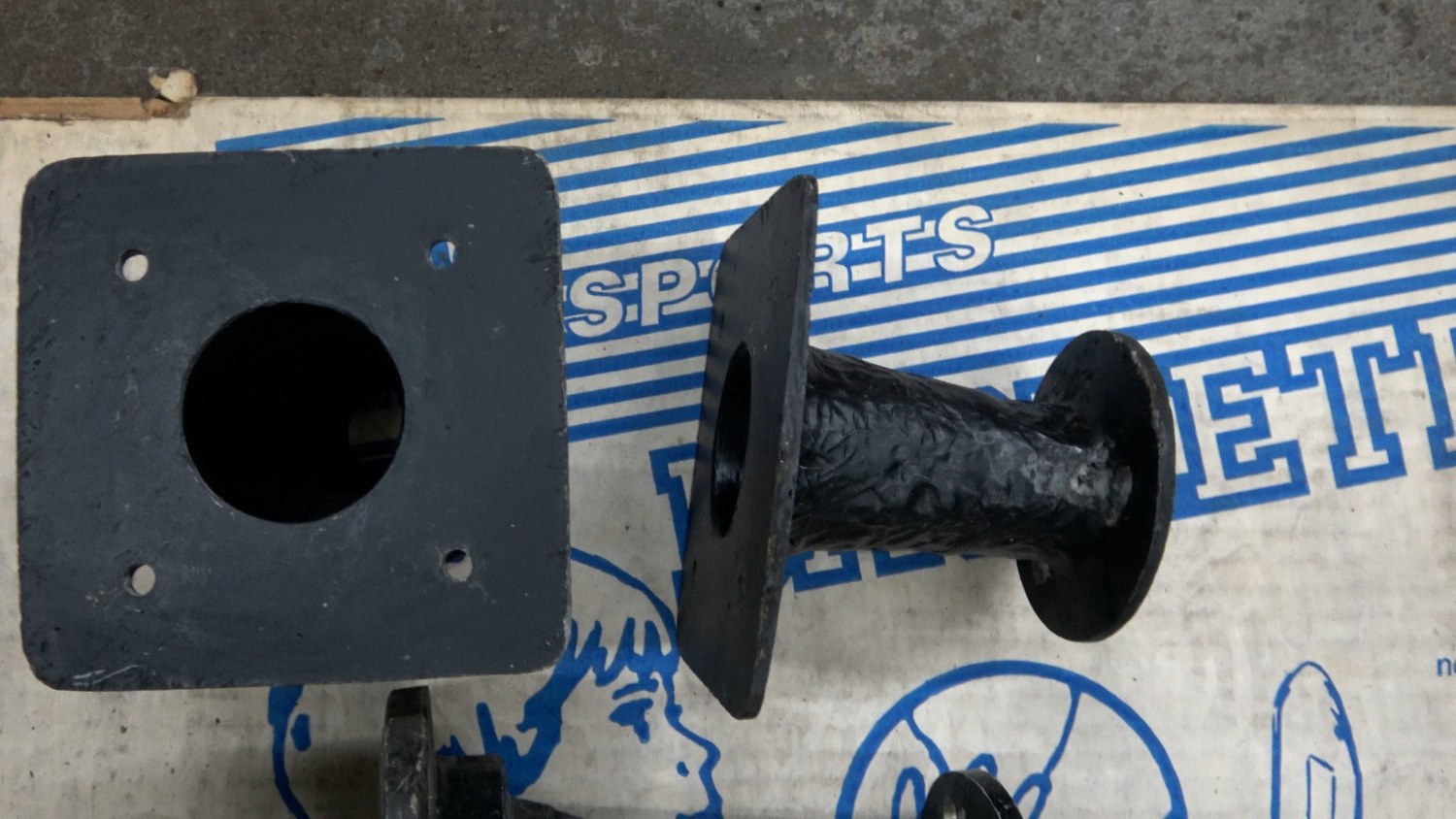

Short 1-Inch Horn Throats / Adapters
Shorter pair of one-inch throat / adapter pieces.
Questions or interest? Contact by emailLenses & Adapters
Qty 5

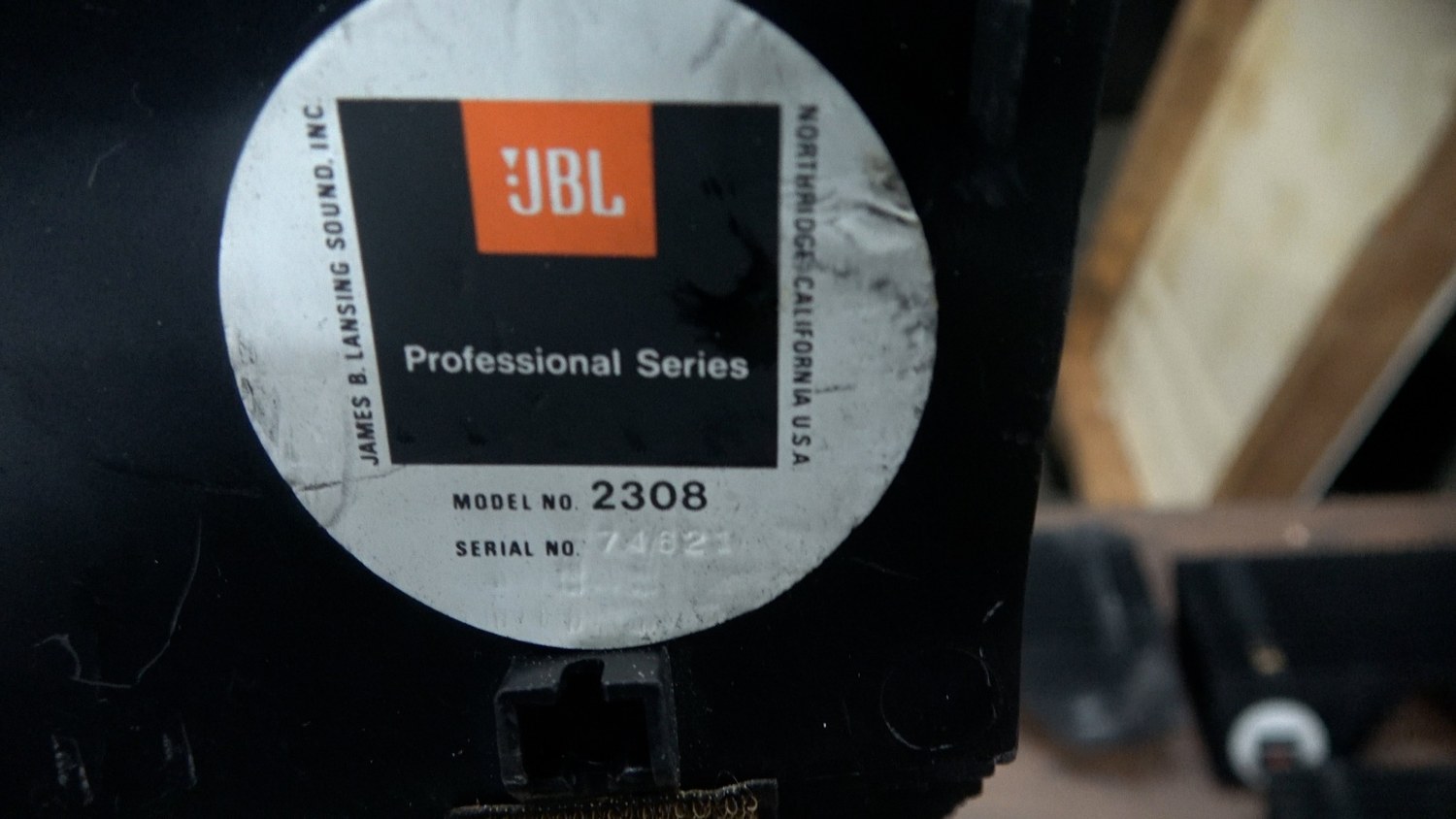

JBL 2308 Acoustic Lenses
Five JBL 2308 acoustic lenses from the collection.
Questions or interest? Contact by emailQty 3

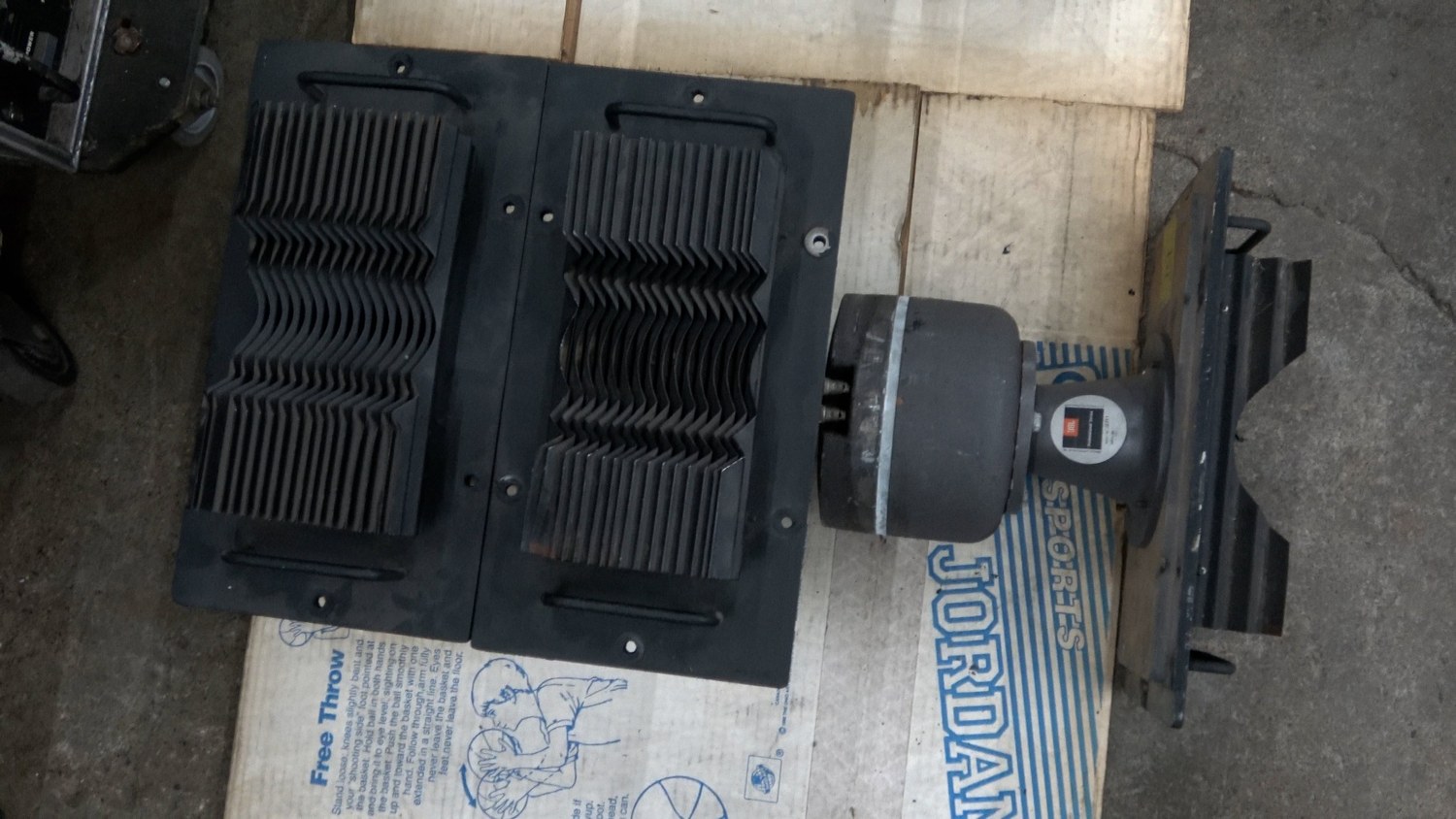

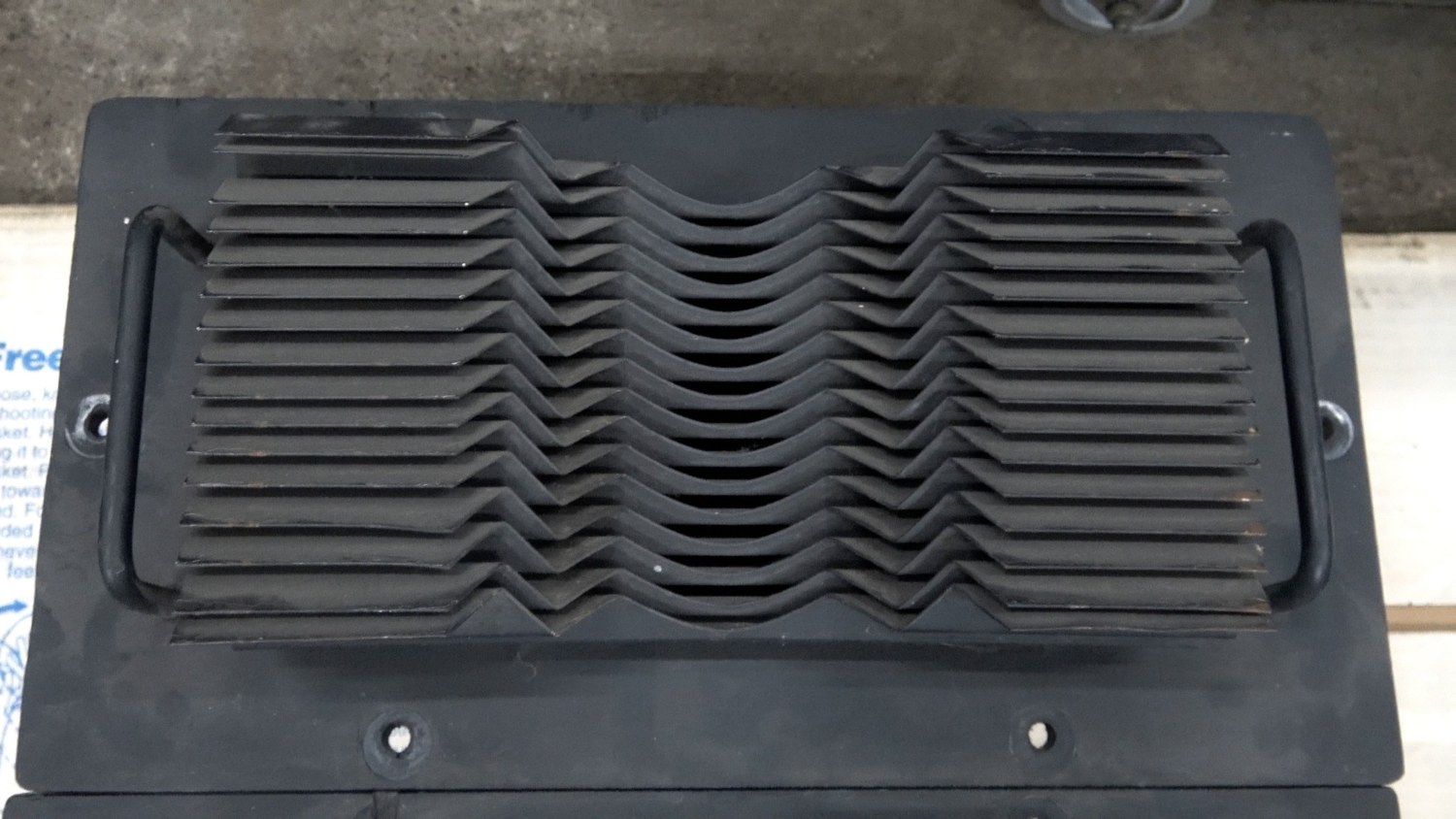

Electro Tec Lenses for JBL 2440
Three Electro Tec lenses documented on JBL 2440 compression drivers.
Lens attached to JBL 2440.
Qty 2

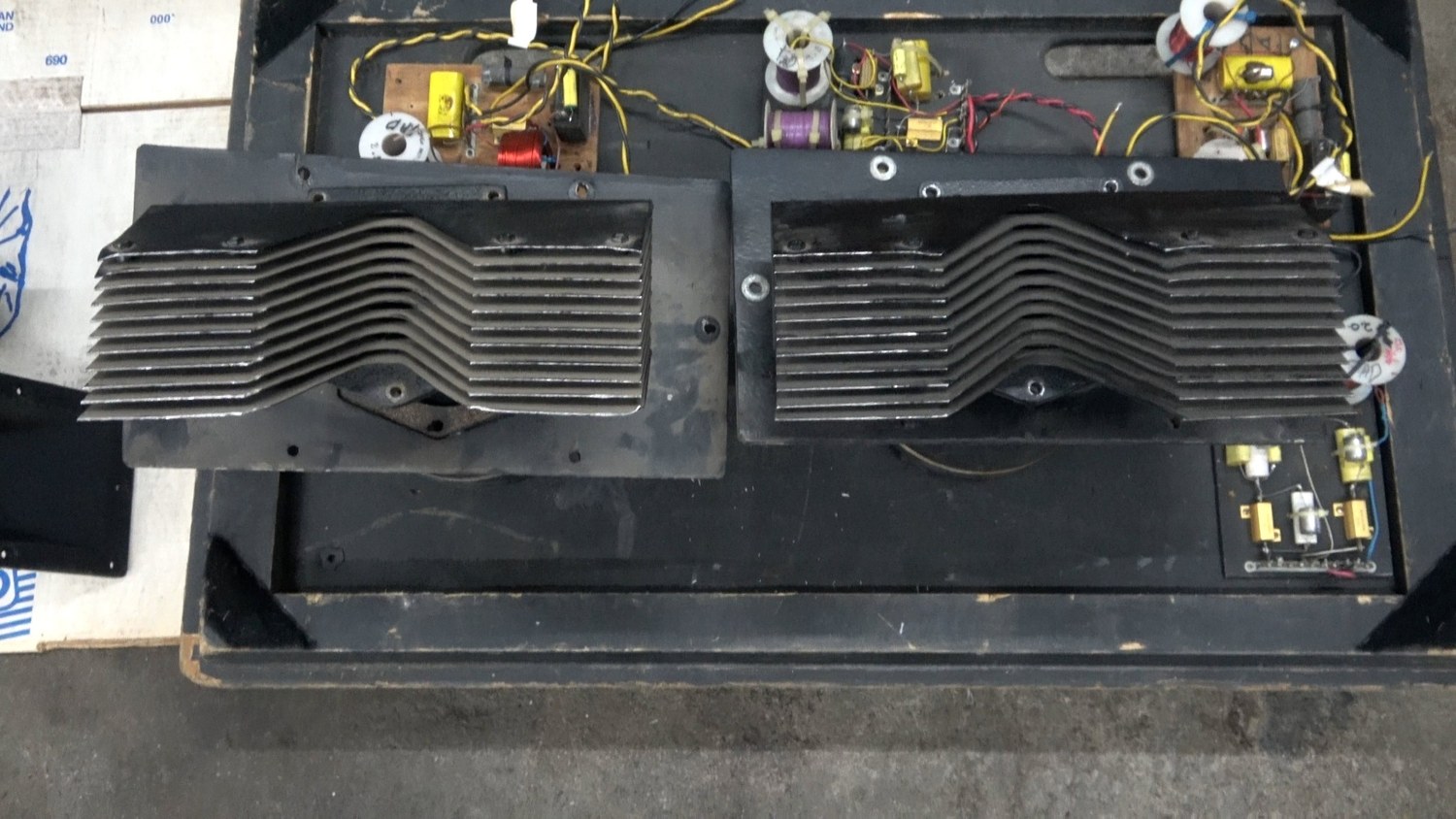

Electro Tec Lenses for TAD TD-4001
Pair of Electro Tec lenses documented with the TAD TD-4001 drivers. The same photograph also shows four Electro Tec TAD filters.
Questions or interest? Contact by emailQty 3

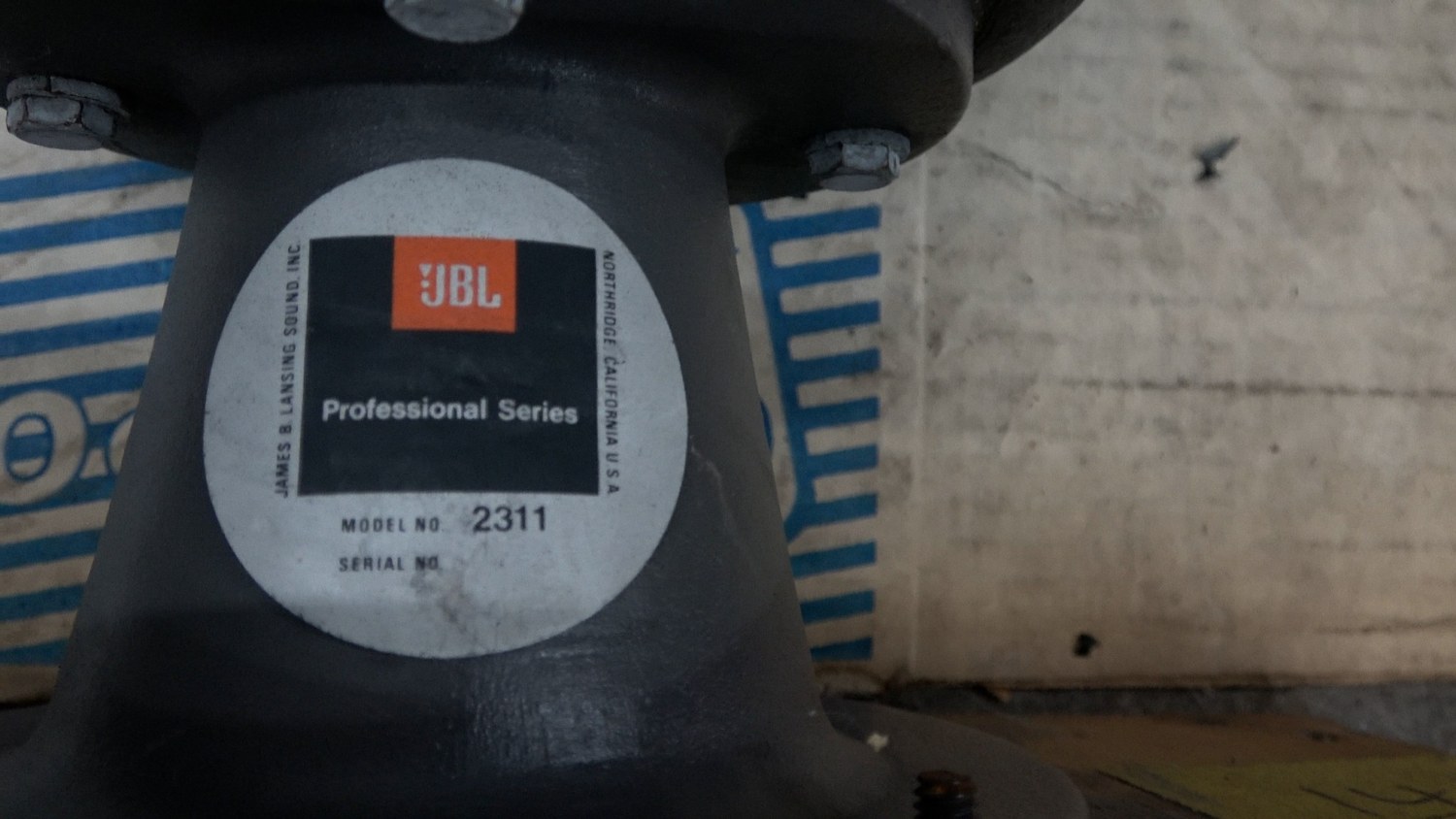

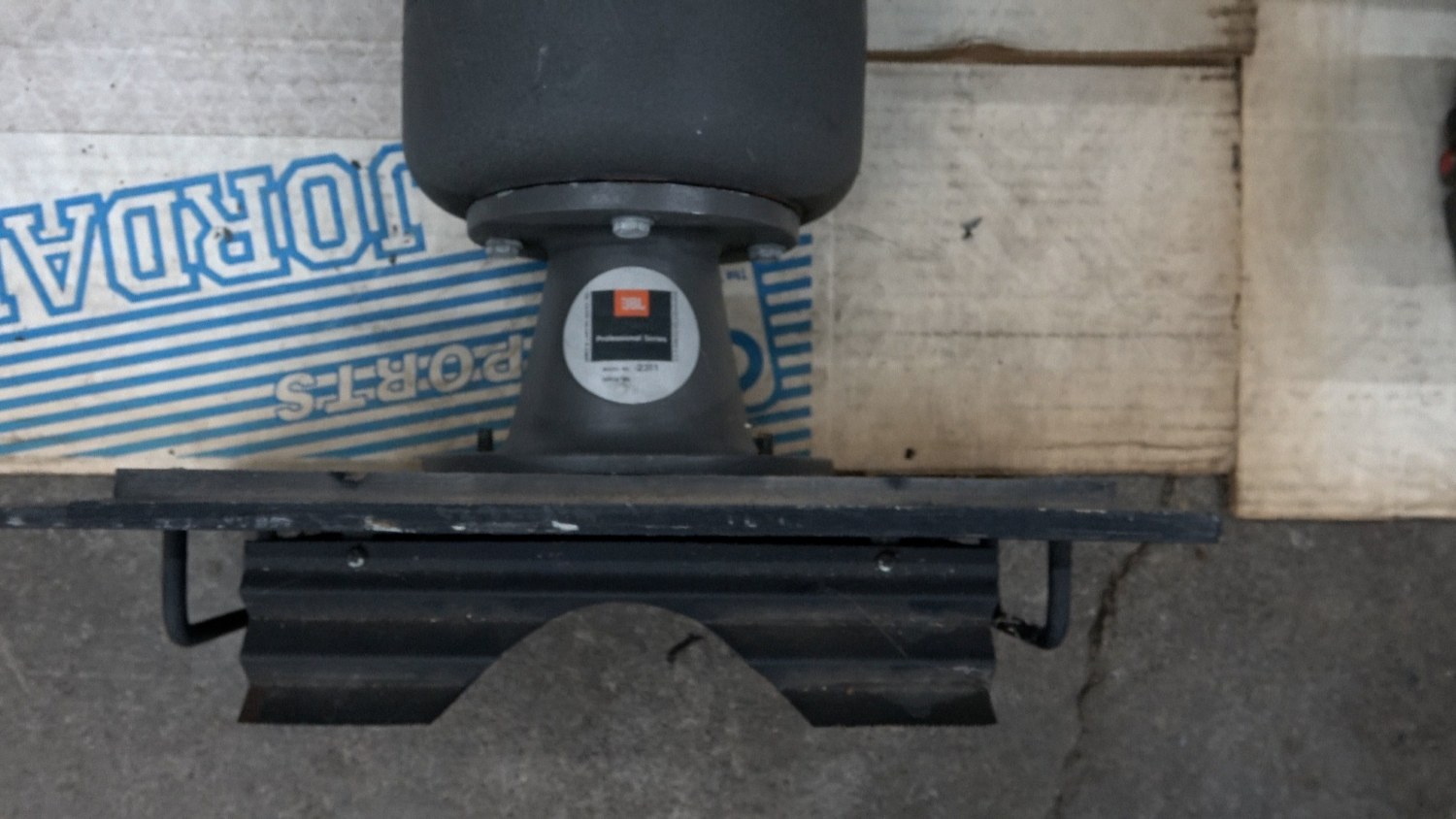

JBL 2311 Adapter
JBL Professional Series model 2311 adapter.
Adapter/lens side view.
